Anti-Theft Alarm Horn (G1823172): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
LHD shown, RHD is similar.

The following step(s) applies to:

All vehicles

Refer to: COWL PANEL
The following step(s) applies to:

Vehicles without Battery Back-Up Sounder

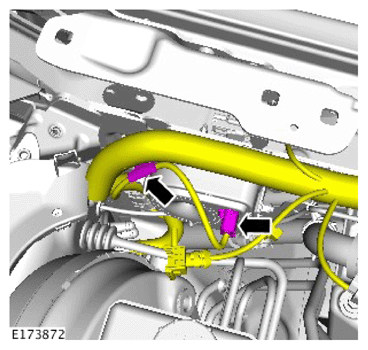

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

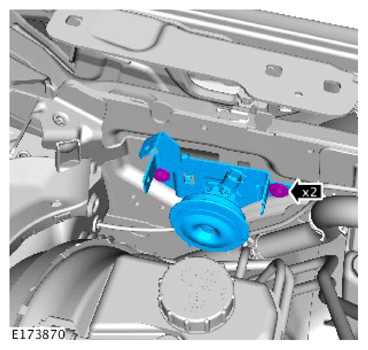

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

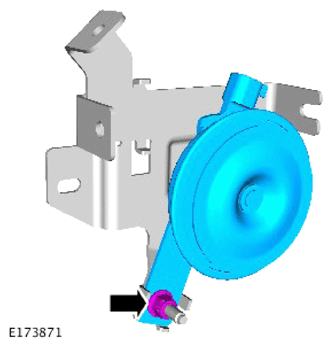

Torque : 7Nm
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7Nm

The following step(s) applies to:

Vehicles with Battery Back-Up Sounder

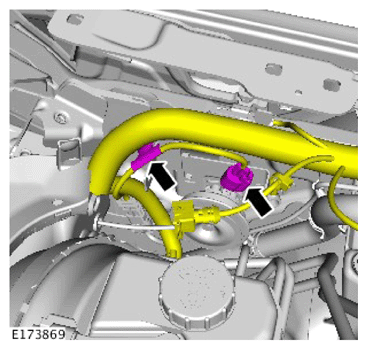

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

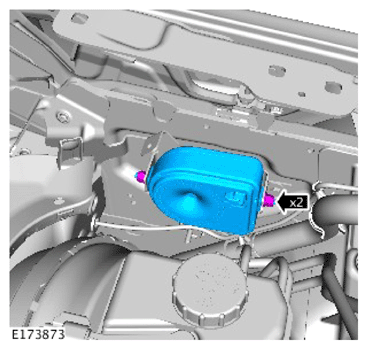

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7Nm
