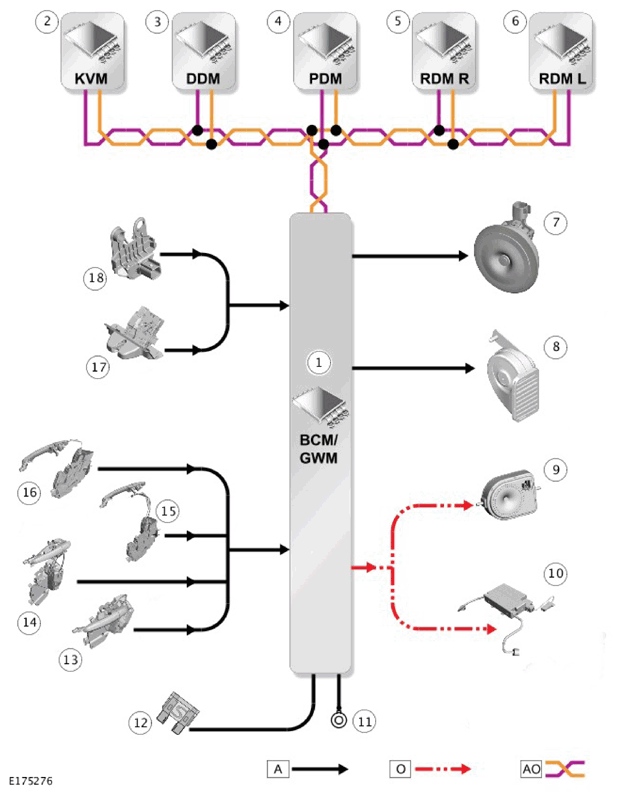

Input/Output Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; O = LOCAL INTERCONNECT NETWORK (LIN) BUS; AO = MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control module/Gateway Module (BCM/GWM) |
| 2 | Keyless Vehicle Module (KVM) |
| 3 | Driver Door Module (DDM) |
| 4 | Passenger Door Module (PDM) |
| 5 | Rear Door Module (RDM) - Right side |
| 6 | Rear Door Module (RDM) - Left side |
| 7 | Passive sounder (where fitted) |
| 8 | Horn |
| 9 | Battery Back-Up Sounder (BBUS) |
| 10 | Volumetric sensor |
| 11 | Ground |
| 12 | Power supply |
| 13 | Front door latch mechanism with ajar switch - Driver side |
| 14 | Front door latch mechanism with ajar switch - Passenger side |
| 15 | Rear door latch mechanism with ajar switch - Right side |
| 16 | Rear door latch mechanism with ajar switch - Left side |
| 17 | Tailgate latch |
| 18 | Hood switch |
