Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT TORQUE LOCATION
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque Specifications:
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

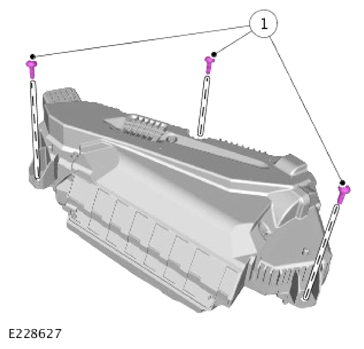

| 1 |
Head Up Display (HUD) control module screws |
1.5 |
- |
13 |

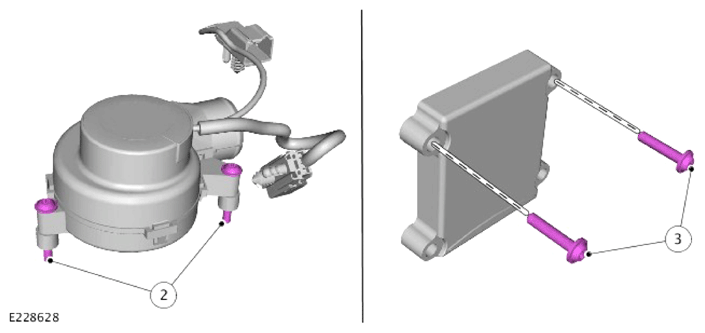

| 2 |
HUD cooling fan motor screws |
1.5 |
- |
13 |
| 3 |
Head Up Display Cooling Fan Control Module (HUDCFCM) screws |
1.5 |
- |
13 |
