Windshield Wiper Pivot Arm (G1821230): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. CAUTION: Always protect paintwork and glass when removing exterior components.

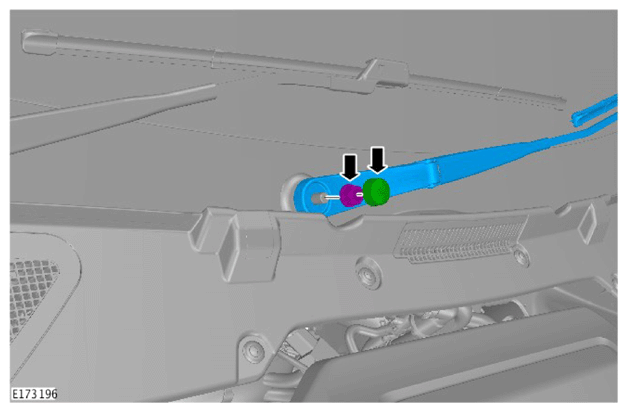

    G14011581Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the windshield wiper arms.

  2. NOTE: Do not disassemble further if the component is removed for access only.

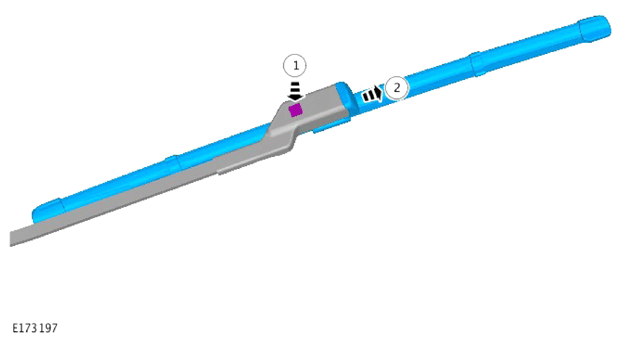

    G14011582Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the wiper blades.
