Windshield Wiper Pivot Arm (G1821230): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION: Always protect paintwork and glass when removing exterior components.
Install the wiper blades.
-

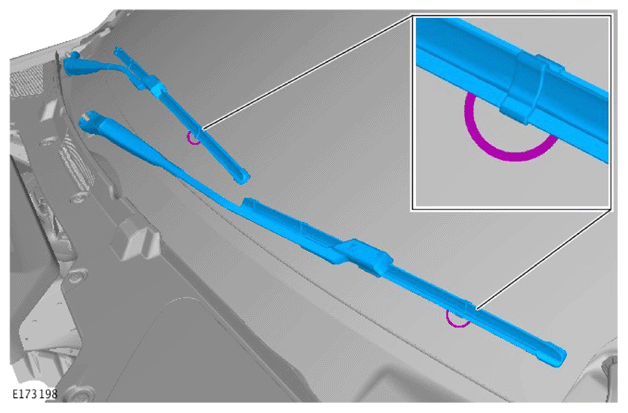

CAUTION: Align the wiper blades onto the centre of the windshield circle mark.

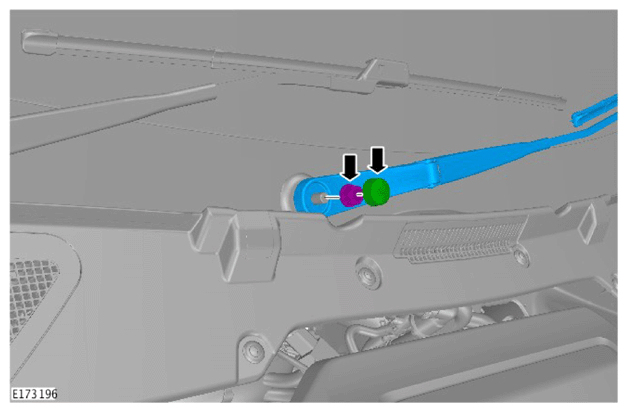

Install the windshield wiper arms.
-
NOTE: After the wiper pivot arm nuts have been tightened to the correct torque value, lift the wiper pivot arm from the windshield and return to the windshield. Make sure that wiper blades are not positioned below any point of the windshield circle mark.
- Torque : 30Nm
