Windshield Wiper Motor - Project 8 (G2255827): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the secondary bulkhead left inner panel.
Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

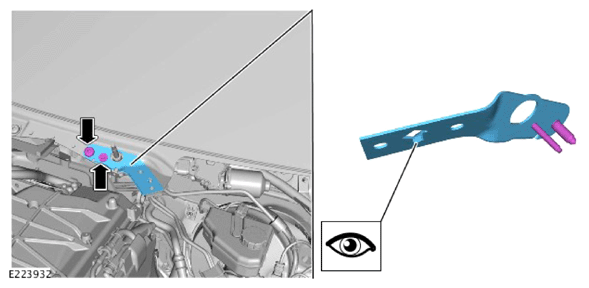

- Remove the 2 bolts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

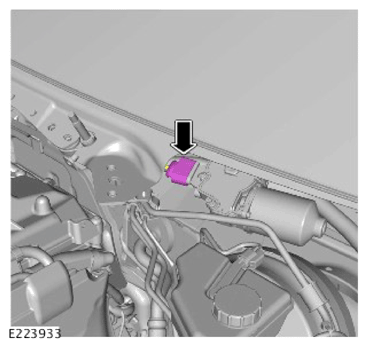

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

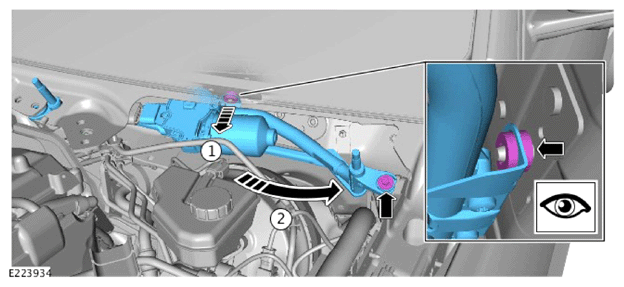

- Remove the bolt.
- Remove the windshield wiper motor.
