Windshield Wiper Motor - Project 8 (G2255827): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

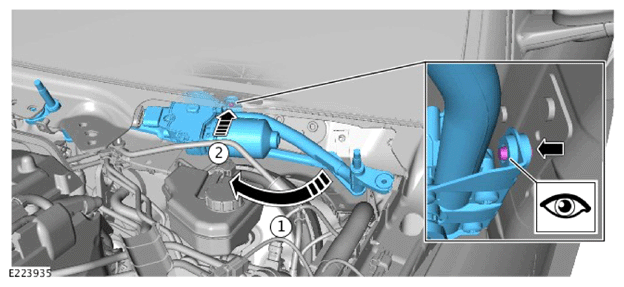

  1. G14011579Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the windshield wiper motor.

    • Install the bracket.
    • Install and tighten the windshield wiper motor 2 bolts.

      Torque  : 12Nm

    • Install and tighten M10 bolt.

      Torque  : 55Nm

  3. Connect the electrical connector.
  4. Install the secondary bulkhead left inner panel.

    Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8

  5. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
