Windshield Wiper Motor - LHD (G1821229): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL

    Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL

    Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L PETROL

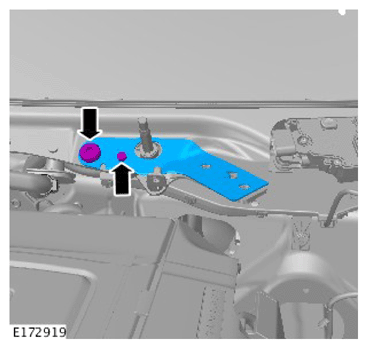

  2. G14011560Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque

    M8: 12Nm

    M12: 55Nm

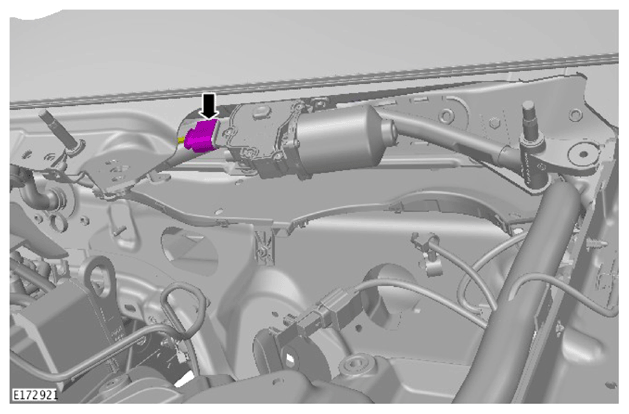

  3. G14011561Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

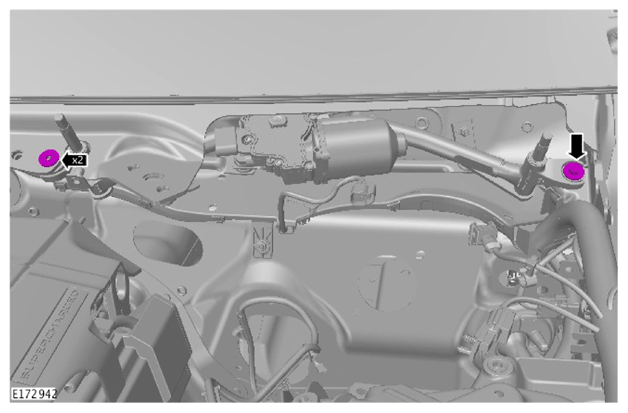

  4. G14011562Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12Nm

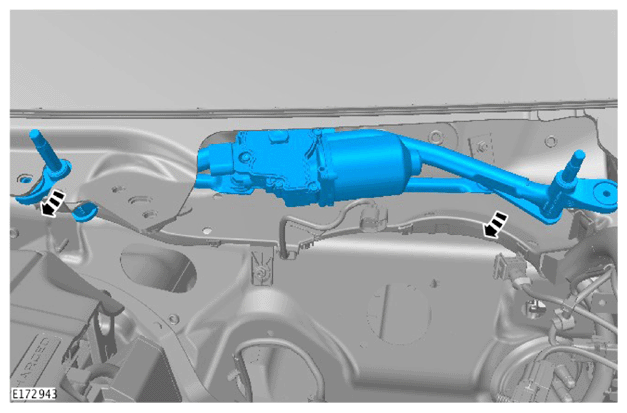

  5. G14011563Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
