Windshield Wiper Motor - LHD (G1821229): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

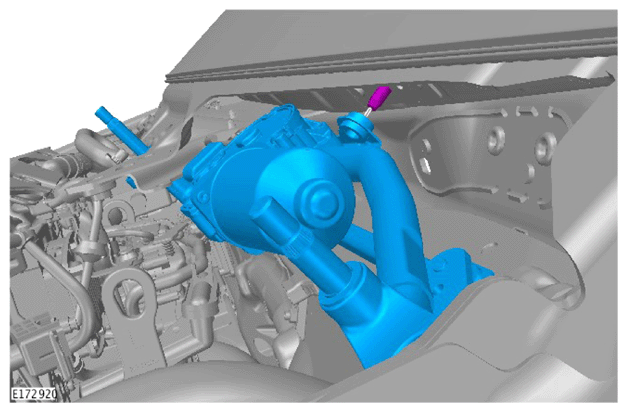

  1. CAUTION: Make sure the windshield wiper motor is located on its stud prior to installing the bolts.
    G14011564Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  2. To install reverse the removal procedure.
