Windshield Washer Reservoir (G1821228): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: RADIATOR SPLASH SHIELD

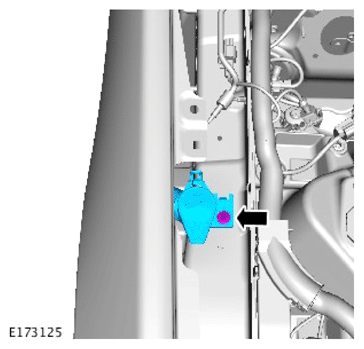

  3. G14011552Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

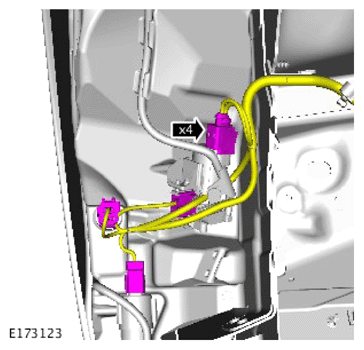

  4. G14011553Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. CAUTION: Be prepared to collect escaping fluids.

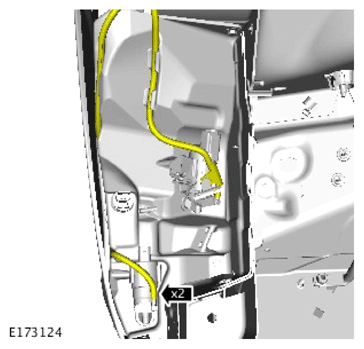

    G14011554Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

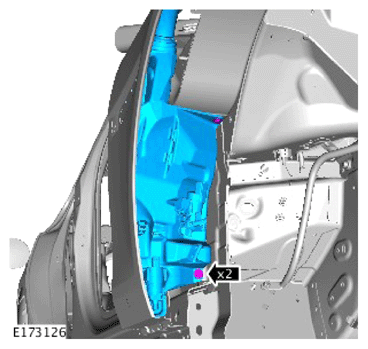

  6. G14011555Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

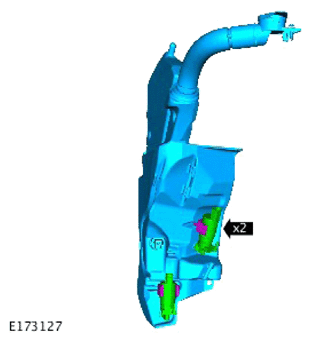

  7. G14011556Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
