Windshield Washer Pump (G1821231): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: FRONT WHEEL ARCH LINER

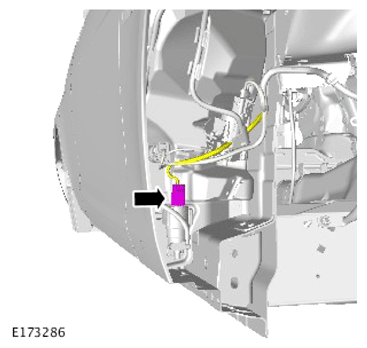

  3. G14011548Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. CAUTION: Be prepared to collect escaping fluids.

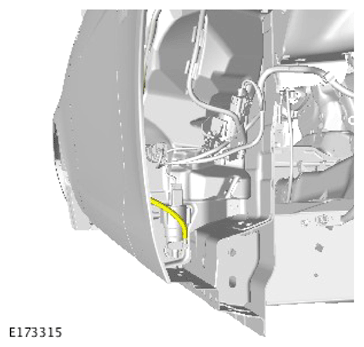

    G14011549Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. CAUTION: Take extra care not to damage the seal.

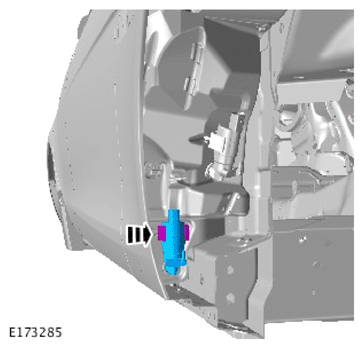

    G14011550Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
