Rain Sensor (G1821227): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Make sure the ignition is OFF at all times during the replacement procedure.
- Care must be taken to avoid damaging the surrounding components.
- After removal and installation of the rain sensor, wait 10 minutes before the calibration routine is completed. Failure to follow this instruction may result in calibration failure.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the interior rear view mirror.
Refer to: INTERIOR REAR VIEW MIRROR

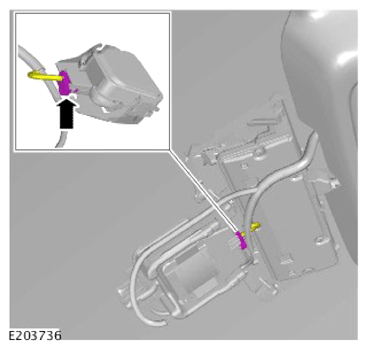

Disconnect the electrical connector.

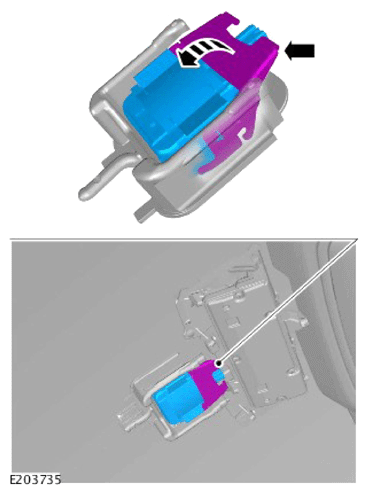

- Carefully release the clips.
- Remove the rain sensor.
