Headlamp Washer Pump (G1821226): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping washer fluid.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the front right wheel arch liner.
Refer to: RADIATOR SPLASH SHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

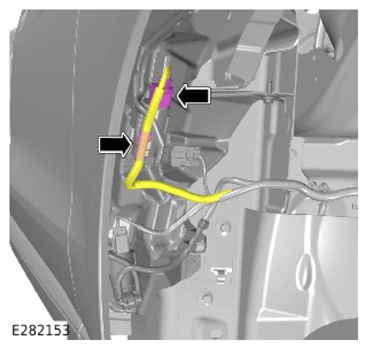

- Disconnect the electrical connector.
- Release the wiring harness clip.
CAUTION: Take extra care not to damage the grommet.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

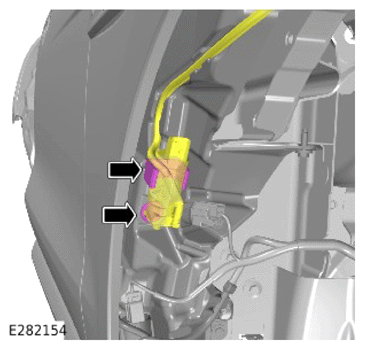

- Release the clip.
- Release headlamp washer pump from the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

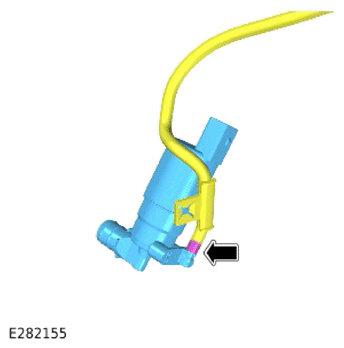

- Disconnect the washer hose.
- Remove headlamp washer pump.
