Headlamp Adjustment (G1822512): Adjustment

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.

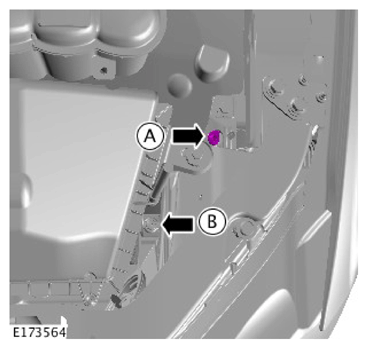

  2. NOTE:
    • A adjusts beam aim vertically.
    • B not adjustable.
    G11311112Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Adjust the headlamps with an Allen Key.

    • To adjust the second headlamp, repeat the above procedure.
