Headlamp Adjustment (G1822511)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park the vehicle on a horizontally level surface.
    • Check and adjust the tyre pressures to the correct level.
    • Gently rock the vehicle to set the suspension.
    • Make sure the fuel tank is full. If not, distribute extra weight evenly over the fuel tank area to represent a full tank of fuel.
    • NOTE: Vehicles with Halogen headlamps only.

    Set the auxiliary lighting switch to 0 position.

  2. Align the headlamp beam setting equipment to one headlamp. Headlamp beam setter
  3. Open the hood.
  4. NOTE: The headlamp setting is 1 % below horizontal and parallel.

    Check the headlamp beam alignment.

  5. NOTE: Vehicles with: Xenon/Halogen headlamps.

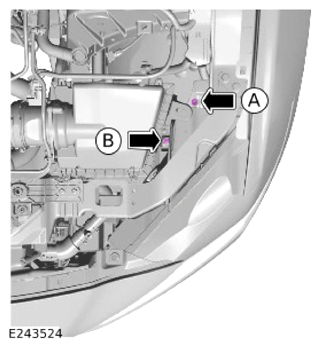

    G14009098Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Adjust the headlamps with an Allen Key.

    • A adjusts beam aim vertically.
    • B adjusts beam aim horizontally.
  6. NOTE: Vehicles with: LED headlamps.

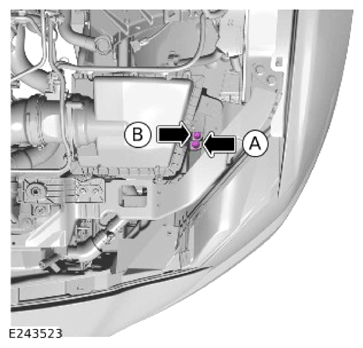

    G14009099Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Adjust the headlamps with an Allen Key.

    • A adjusts beam aim vertically.
    • B adjusts beam aim horizontally.
  7. To adjust the second headlamp, repeat the above procedure.
