Inspection Table
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

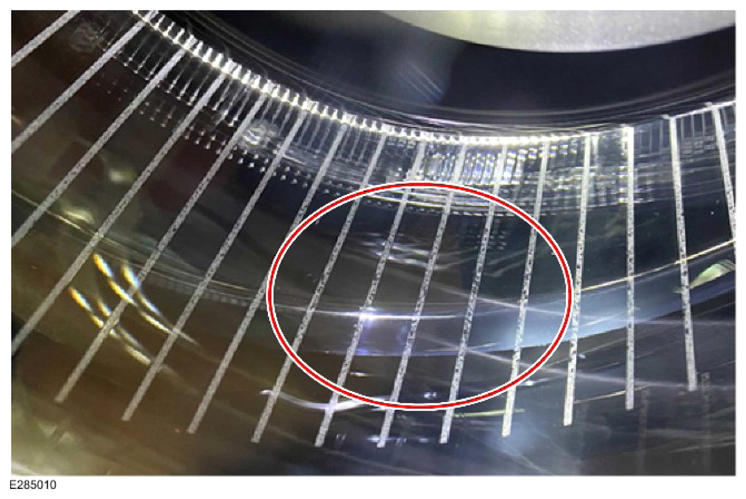

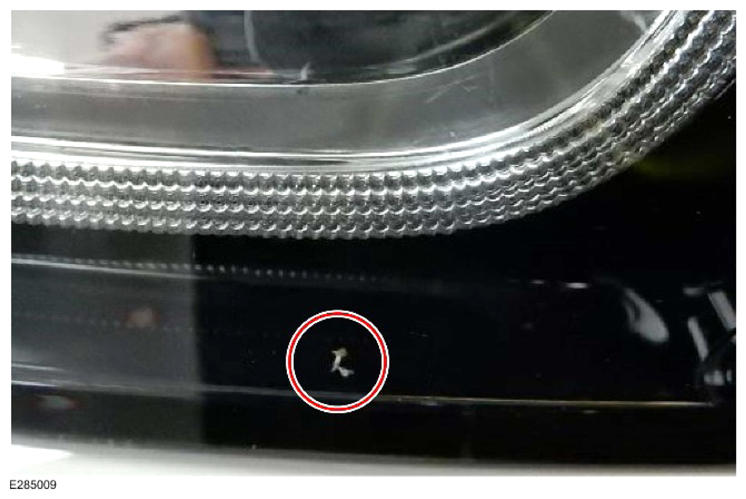

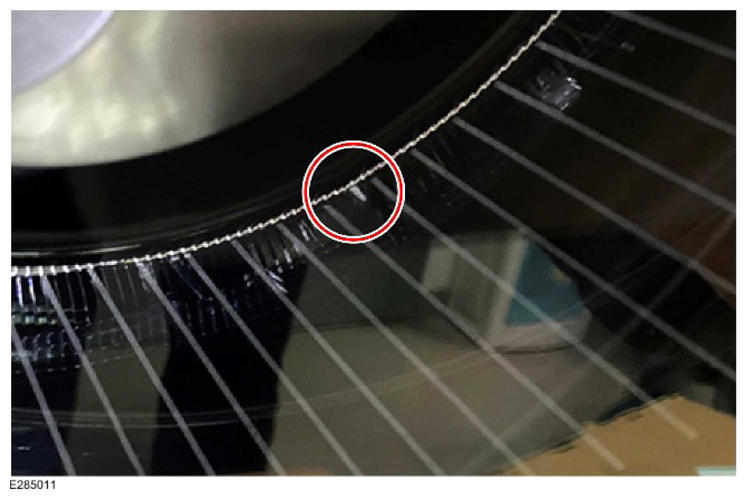

Refer to the inspection table and images below for further guidance identifying contamination defects
| DEFECTS | SIZE (MM) | MAXIMUM AMOUNT OF DEFECTS ALLOWED | FURTHER GUIDELINES |
|---|---|---|---|
| Internal and external scratches (inline with warranty policy) | <0.1 width x <10 length | 4 | Minimum distance between each defect a radius of 50mm, permissible if performance of coating is unaffected |
| <0.1 width x <30 length | 2 | Permissible if performance of coating is unaffected | |
| Dirt and particle contamination (non water/condensation) where the contamination has a different surface color. Visible through the lens/transparent part of the lamp | <0.30 | 6 | |
| >0.30 to <0.50 | 4 | ||
| >0.50 to <0.80 | 2 | ||
| Scuffing and surface marring area | <9.0mm2 | 4 | Must not distract from consistent finish |
| Pin holes or inclusions (solvent trapping) in the lens material or coatings | <0.30 | 6 | |
| >0.30 to <0.50 | 4 | ||
| >0.50 to <0.80 | 1 | ||
| Dirt or contamination in the painted areas of the lamp (for example obscuration banding) | <0.30 | 8 | Minimum distance between each defect a radius of 50mm, permissible if performance of coating is unaffected |
| >0.30 to <0.50 | 5 | Minimum distance between each defect a radius of 50mm, permissible if performance of coating is unaffected | |
| >0.50 to <0.80 | 2 | Minimum distance between each defect a radius of 50mm, permissible if performance of coating is unaffected |
Defect greater than 1.0mm are not acceptable for similar coloured particles compared to background (for example black particle on black bezel).
Defects greater than 0.75mm are not acceptable for contrast coloured particles compared to background (for example white particle on black background).
Graining on the interior stripes of the lamp is a design feature. Variation is possible from the manufacturing process, this is not warrantable.
A moulding feature is seen within the lamp bezel, this is not warrantable.
