Outer Constant Velocity Joint Boot (G1895701): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Clean and inspect the components for deterioration.
- Pack the outer CV joint with the grease supplied.

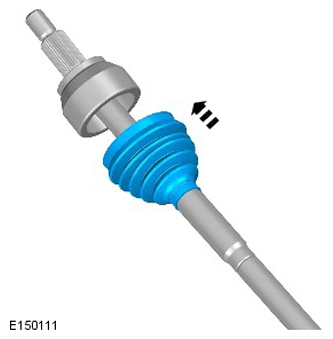

- Install the outer CV boot.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

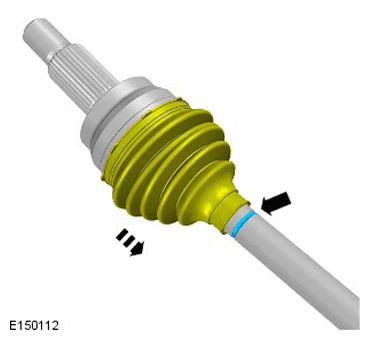

Make sure the outer CV boot is correctly installed.
NOTE: Make sure the retaining clip is correctly seated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 retaining clips using a suitable tool.
NOTE: Use new retaining clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the inner CV boot and retaining clip.

Renew Part: Inner and outer constant velocity joint boot kit Quantity: 1.
CAUTION: Inspect the retaining clip. Replace if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

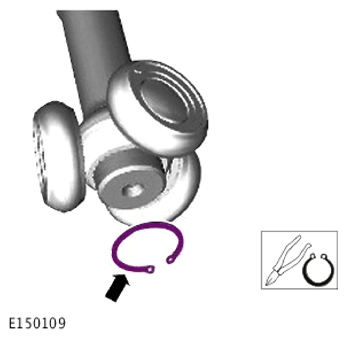

Install the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the inner CV joint.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

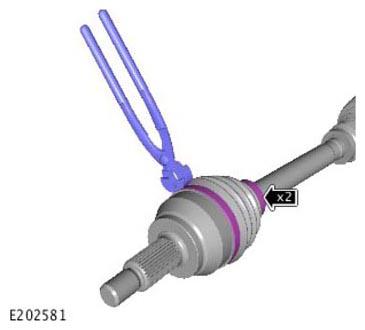

Install the 2 retaining clips using a suitable tool.
Install the front halfshaft.
Refer to: FRONT HALFSHAFT
