Inner Constant Velocity Joint Boot (G1895700): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the front halfshaft
Refer to: FRONT HALFSHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

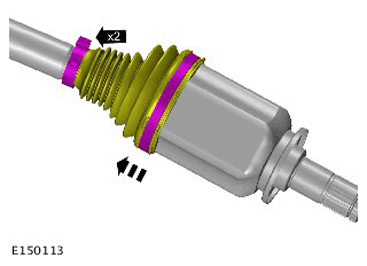

Remove and discard the 2 retaining clips.
CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

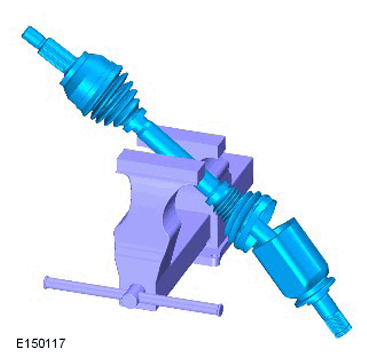

Position the halfshaft in a vice as illustrated.

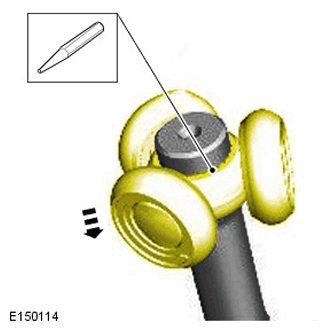

CAUTION: Using a suitable soft drift, strike the joint in the area indicated to release it from the shaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

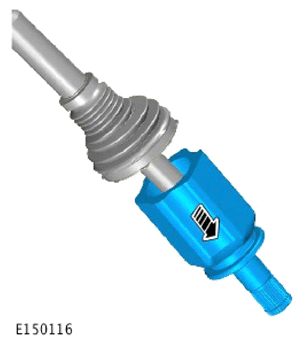

Remove the inner Constant Velocity (CV) joint using a soft faced hammer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool mark the position of the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

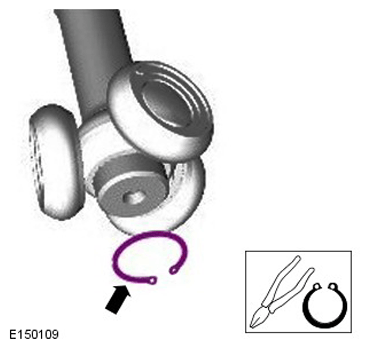

Remove and discard the circlip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

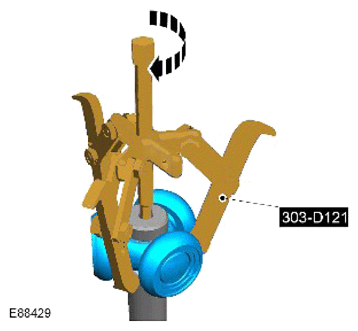

Using the special tool remove the bearings.

Special Tool(s): 303-D121
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

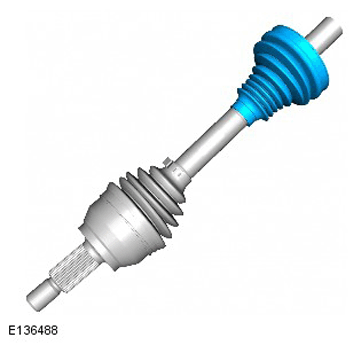

Remove and discard the inner CV joint boot.
