Inner Constant Velocity Joint Boot (G1895700): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

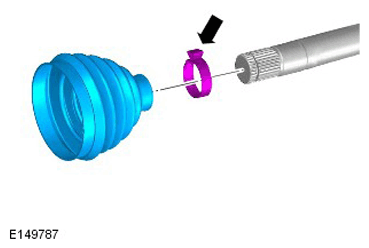

Install the outer Constant Velocity (CV) joint boot and retaining clip.

Renew Part: Inner and outer constant velocity joint boot kit Quantity: 1.

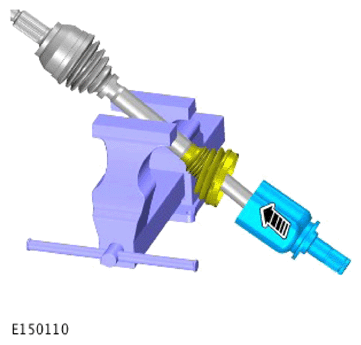

Using a suitable hammer and drift install the bearing.
Install a new circlip.
Renew Part: Circlip Quantity: 1.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Inner CV joint.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

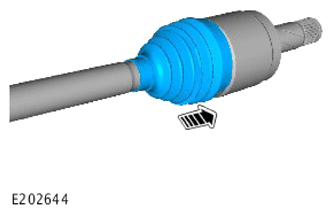

- Install the inner CV joint boot.
- Pack the inner CV joint with the grease supplied.
NOTE:
- Make sure the inner CV boot is correctly fitted.
- Make sure the retaining clip is correctly seated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

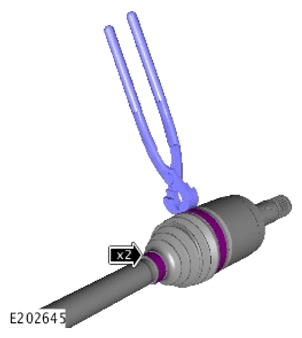

Install the 2 retaining clips using a suitable tool.
Install the front halfshaft.
Refer to: FRONT HALFSHAFT
