HALFSHAFT Support Bracket (G1899510): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the air defector.
Refer to: ENGINE UNDERSHIELD
Remove the front halfshaft.
Refer to: FRONT HALFSHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

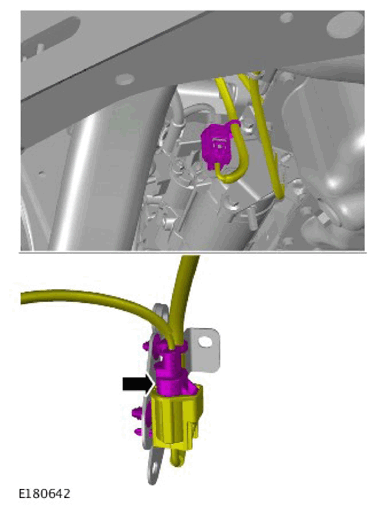

Disconnect the wiring harness and position to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

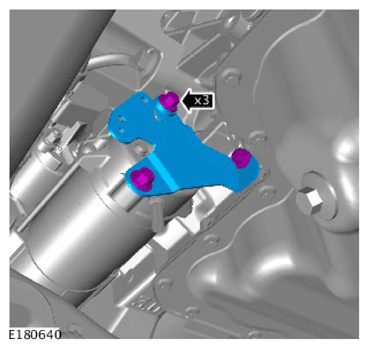

Remove the 3 retaining bolts and remove the starter motor bracket.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

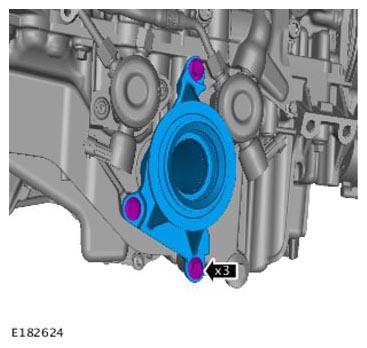

Remove the halfshaft support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

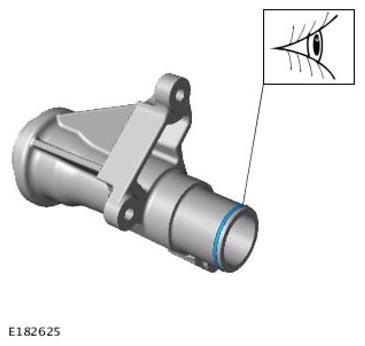

Discard the O-ring seal.
