HALFSHAFT Seal (G1895879): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the final drive unit removed for clarity.

Refer to: FRONT HALFSHAFT
WARNING: Be prepared to collect escaping oil.

CAUTION: Care must be taken to avoid damage to the seal register and running surface.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

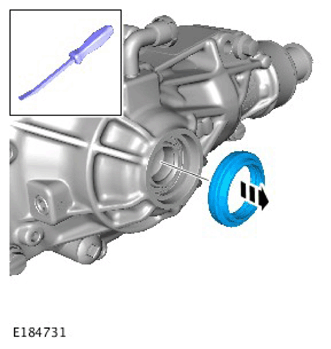

Remove and discard the halfshaft seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

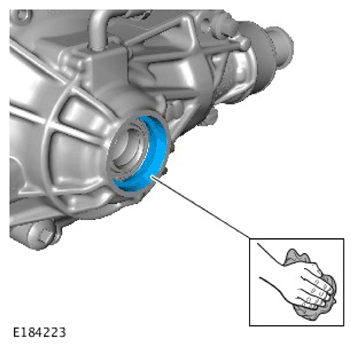

Clean the seal register and thoroughly inspect for damage.
