HALFSHAFT Seal (G1895879): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

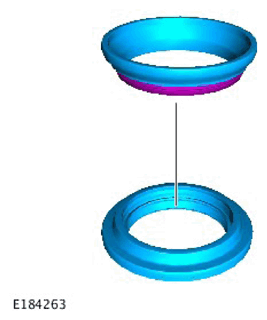

  1. G11326403Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

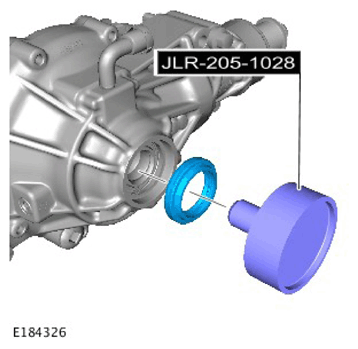

  2. G11326404Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, install a new halfshaft oil seal.

    Special Tool(s): JLR-205-1028

    Renew Part: Halfshaft seal  Quantity: 1.

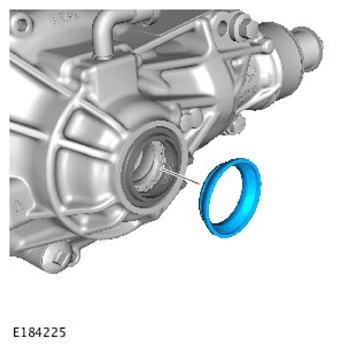

  3. G11326405Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. Refer to: FRONT HALFSHAFT
