Front End Body Panels (G2262150)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

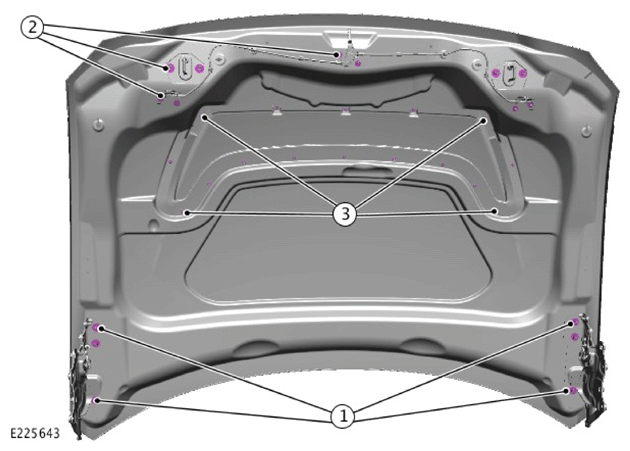

| 1 | Hood to hinge bracket nuts. | 25 | 18.4 | |
| 2 | Hood safety catch assembly bolts. | 10 | 7.3 | |
| 3 | Hood vent nuts. | 7 | 5.1 | |

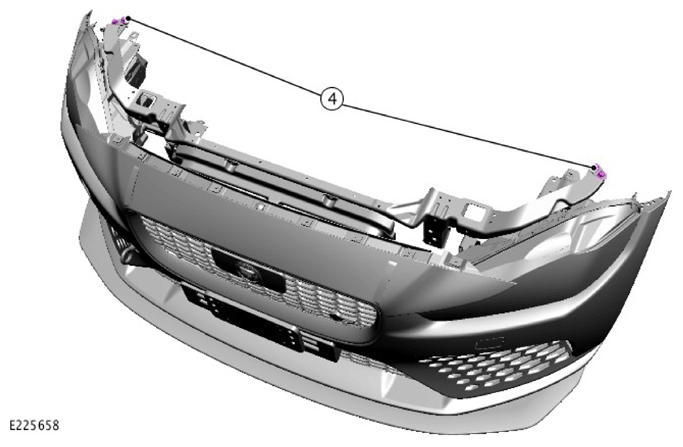

| 4 | Hood latch panel. | 25 | 18.4 | |

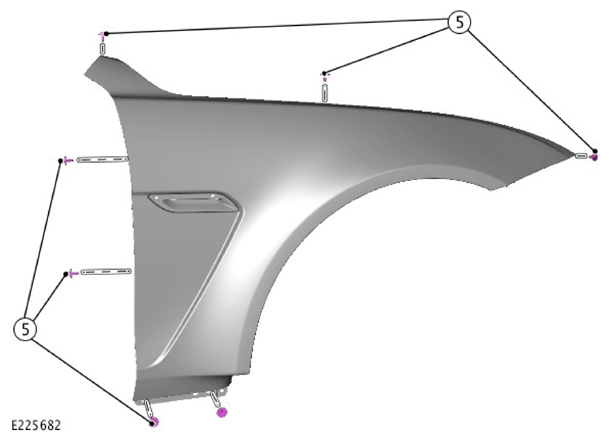

| 5 | Fender bolts. | 10 | 7.3 | |

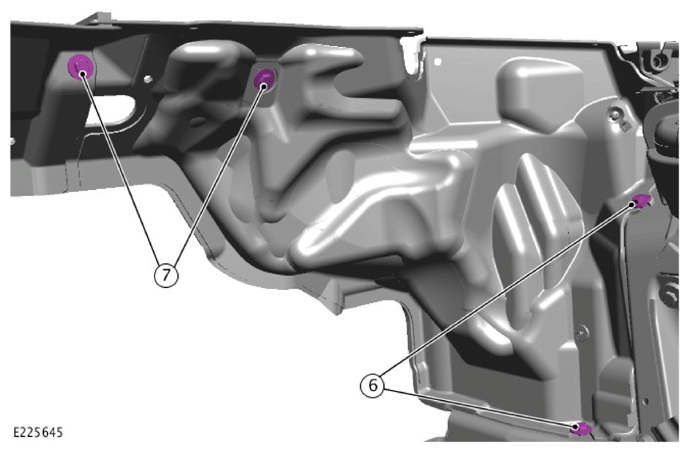

| 6 | Secondary Bulkhead Left Outer Panel bolts. | 6 | 4.4 | |
| 7 | Secondary Bulkhead Left Inner Panel bolts. | 6 | 4.4 | |

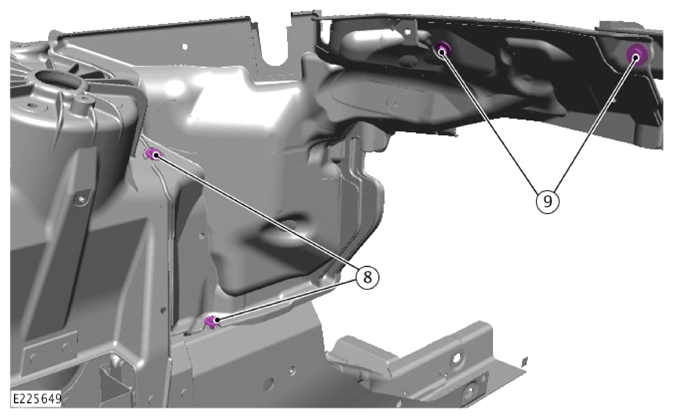

| 8 | Secondary Bulkhead Right Outer Panel bolts. | 6 | 4.4 | |
| 9 | Secondary Bulkhead Right Inner Panel bolts. | 6 | 4.4 | |

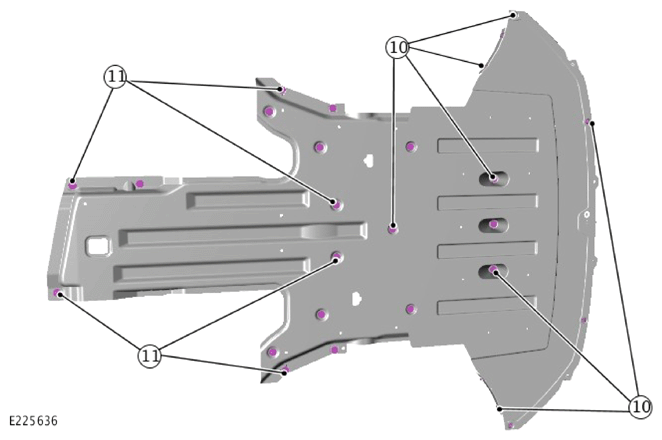

| 10 | Engine Under shield bolts. | 9 | 6.6 | |
| 11 | Transmission Under shield bolts. | 9 | 6.6 |
