Transmission UNDERSHIELD - Project 8 (G2248771): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  1. This procedure contains illustrations showing certain components removed to provide extra clarity.
  2. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

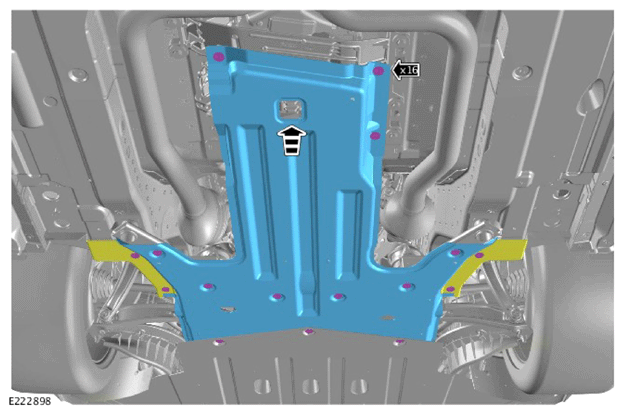

  2. G14009978Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 16 bolts.
    2. Remove the transmission undershield.
