Secondary Bulkhead Right Panel - V6 S/C 3.0L Petrol (G1817283): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.
  2. Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

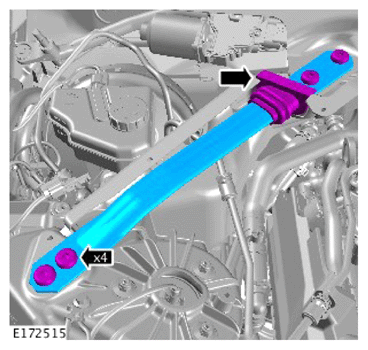

  4. G14009941Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 55Nm

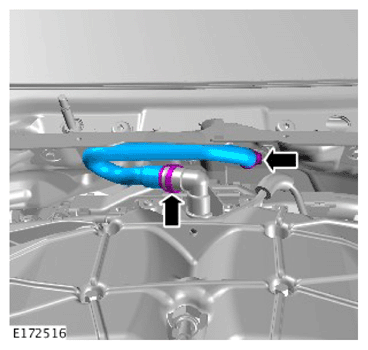

  5. G14009942Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

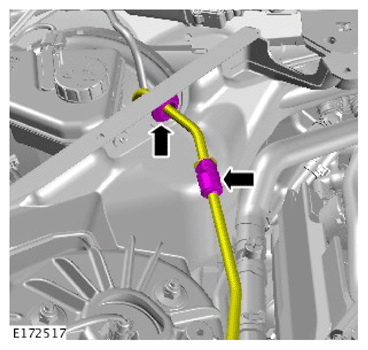

  6. G14009943Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. NOTE: LHD vehicles.

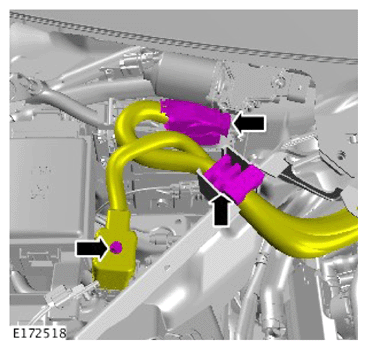

    G14009944Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 8Nm

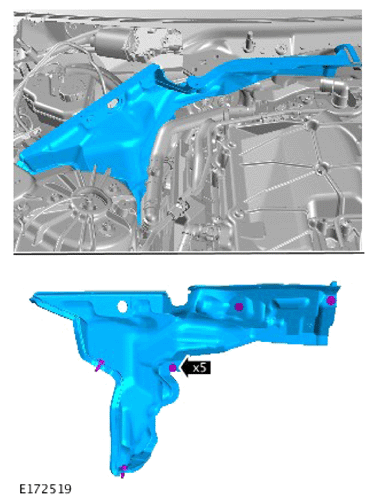

  8. G14009945Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm
