Secondary Bulkhead Right Panel - INGENIUM I4 2.0L Petrol (G2020325): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

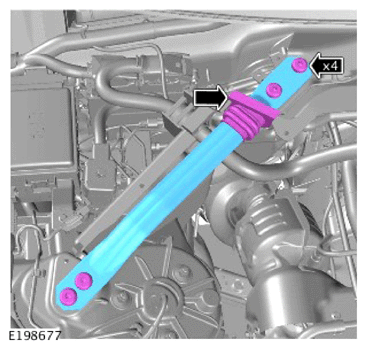

1. Remove the four bolts.
2. Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

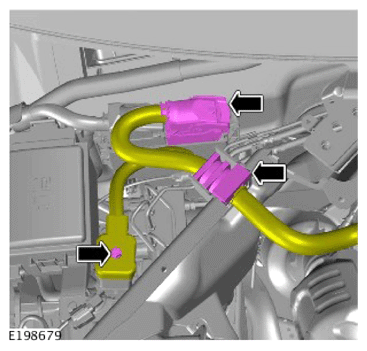

1. Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

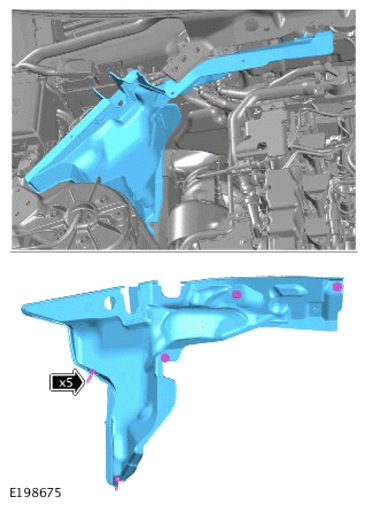

1. Remove the 5 retaining bolts.
2. Remove the secondary bulkhead right panel.
