Secondary Bulkhead Right Panel - INGENIUM I4 2.0L Diesel (G1817281): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
  3. Refer to: COWL PANEL

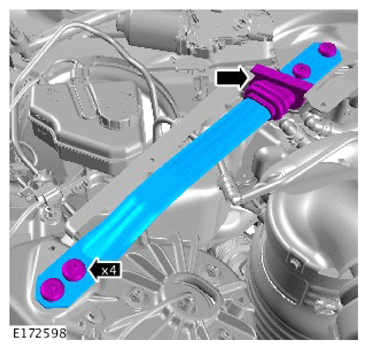

  4. G14009933Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 55Nm

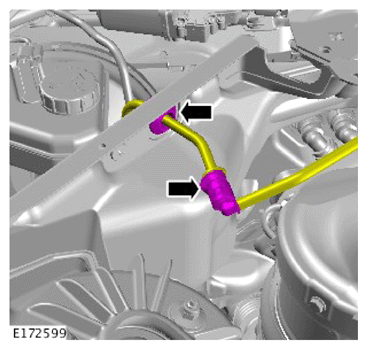

  5. G14009934Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE: LHD vehicles.

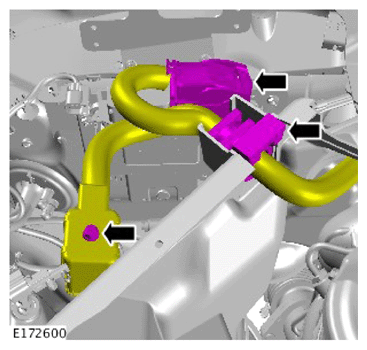

    G14009935Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 8Nm

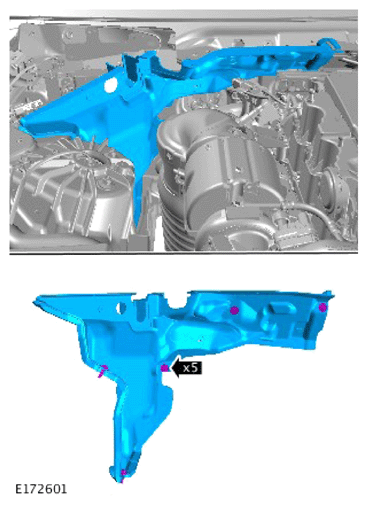

  7. G14009936Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm
