Secondary Bulkhead Left Panel - V6 S/C 3.0L Petrol (G1817280): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the RH secondary bulkhead panel.

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL

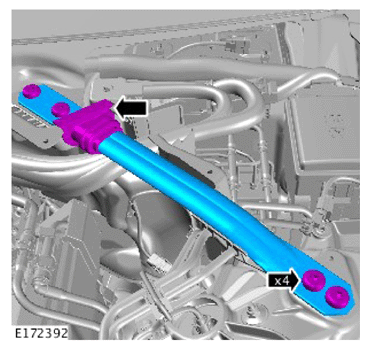

  3. G14009925Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 55Nm

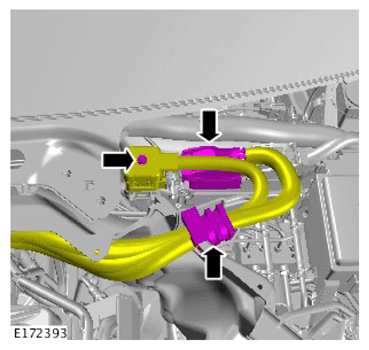

  4. G14009926Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 8Nm

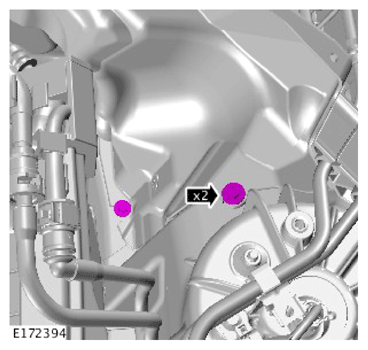

  5. G14009927Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm

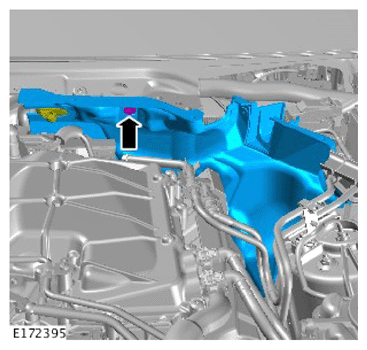

  6. G14009928Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm
