Secondary Bulkhead Left Panel - INGENIUM I4 2.0L Petrol (G2020320): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

1. Install the secondary bulkhead left panel.
2. Install and tighten the 3 bolts.
  Torque : 5.4Nm
1. Install the auxiliary coolant pump.
2. Install and tighten the 2 bolts.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

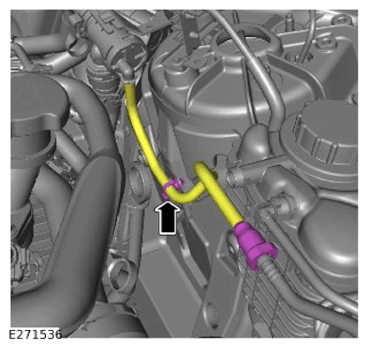

1. Install the fir tree clip.
2. Connect the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

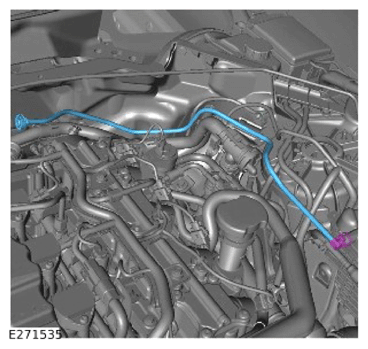

1. Install the coolant pipe.
2. Connect the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

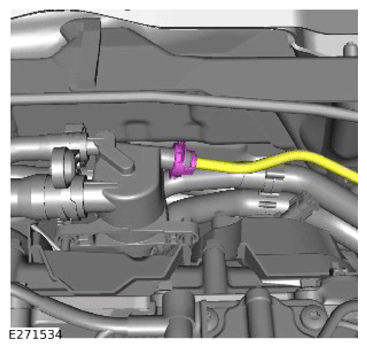

Connect the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

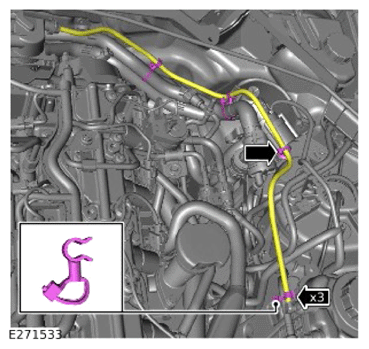

1. Install the fir tree clip.
2. Install the coolant pipe into the 3 clips.
Connect the brake booster vacuum hose quick release connector.
1. Install the engine compartment brace.
2. Install and tighten the 4 bolts.
  Torque : 55Nm
Install the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L PETROL
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
