Secondary Bulkhead Left Panel - INGENIUM I4 2.0L Diesel (G1817278): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the RH secondary bulkhead panel.

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL

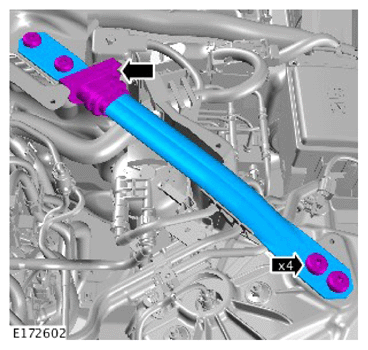

  3. G14009917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 55Nm

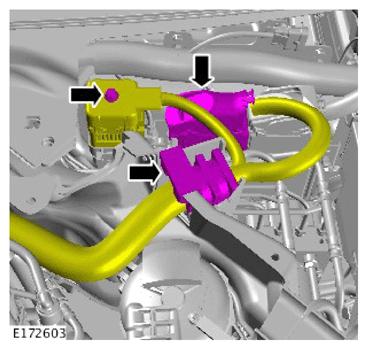

  4. G14009918Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 8Nm

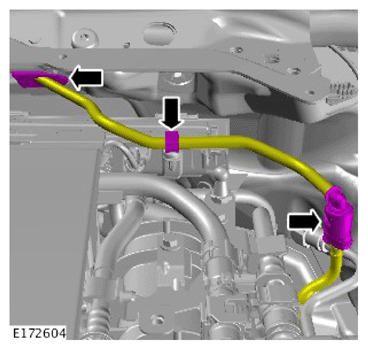

  5. G14009919Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. Remove the fuel filter.

    Refer to: FUEL FILTER

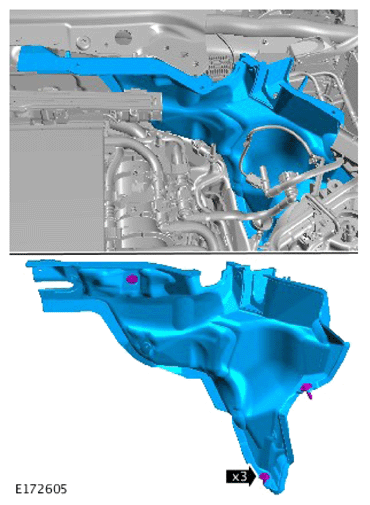

  7. G14009920Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm
