Secondary Bulkhead Left Inner Panel - Project 8 (G2248500): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  1. This procedure contains illustrations showing certain components removed to provide extra clarity.
  2. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Remove the secondary bulkhead left outer panel.

    Refer to: SECONDARY BULKHEAD LEFT OUTER PANEL - PROJECT 8

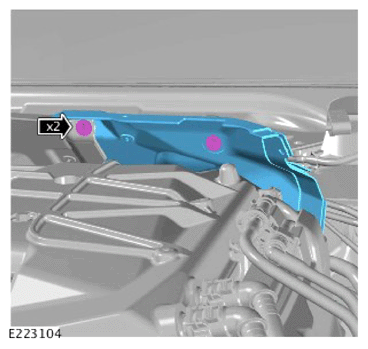

  2. G14009971Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 2 bolts.
    2. Remove the secondary bulkhead left inner panel.
