Rear UNDERSHIELD - Project 8 (G2269180): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

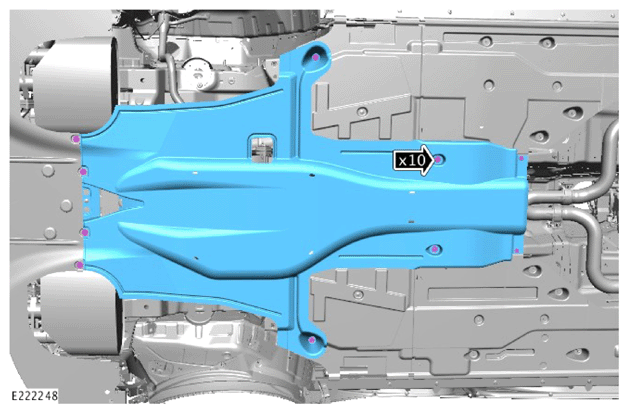

  1. G14009980Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the rear undershield.
    2. Install and tighten the 10 bolts.

      Torque  : 9Nm
