Radiator Splash Shield (G1817598): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

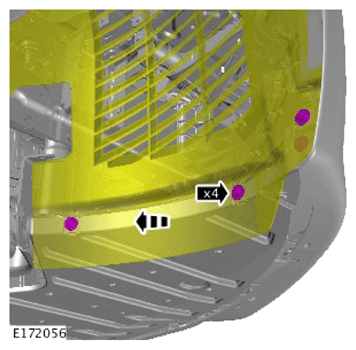

  2. G14009911Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Repeat step for other side.

    Torque  : 7Nm

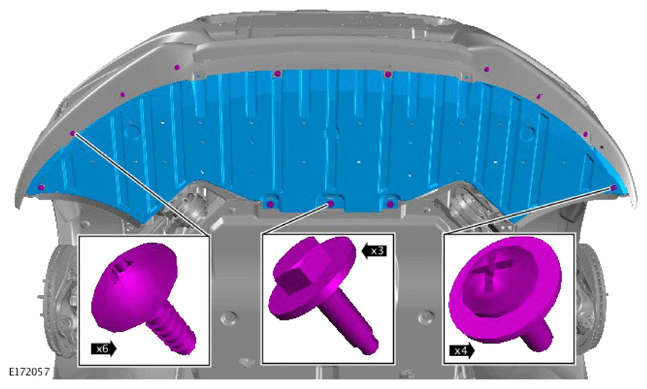

  3. G14009912Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7Nm
