Hood Latch Panel (G1817620): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
Repeat the procedure for the other side.

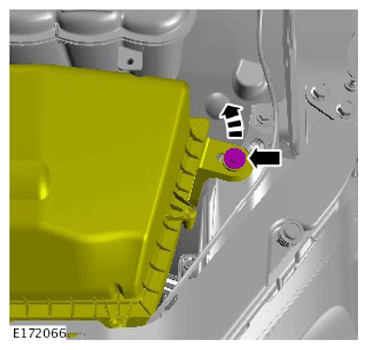

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 9Nm

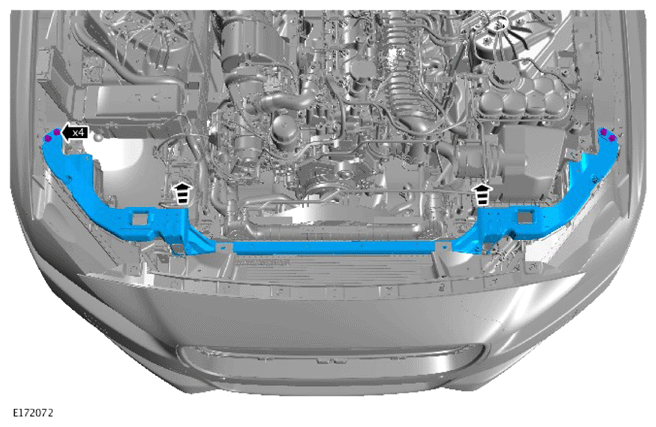

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

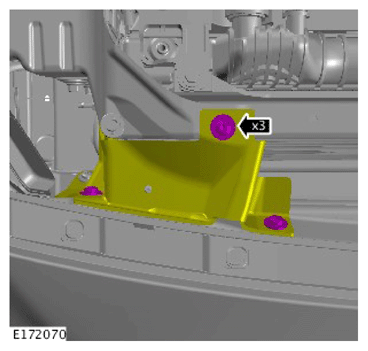

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10Nm

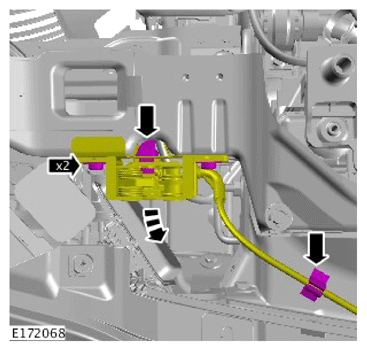

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10Nm

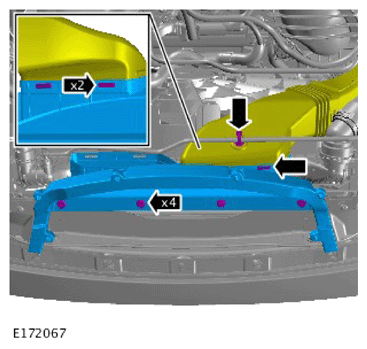

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Repeat step for other side.
Torque
: 9Nm

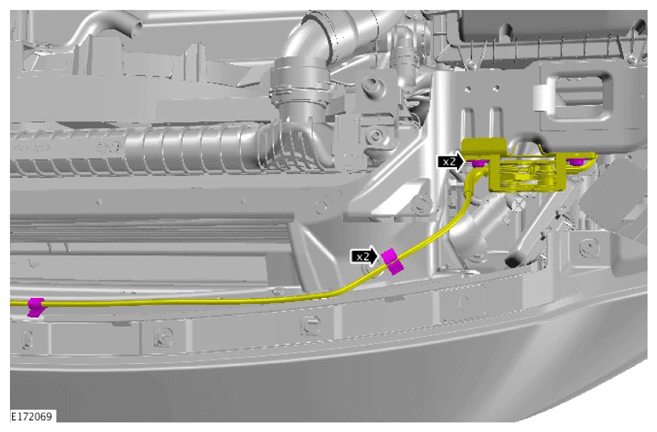

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Repeat step for other side.
Torque
: 25Nm

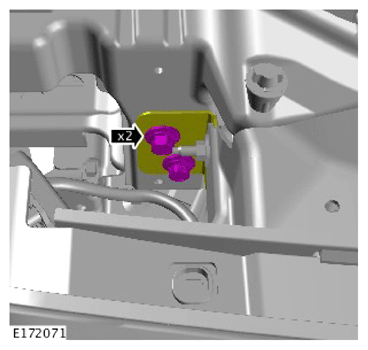

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 25Nm
