Hood - Remove For Access And Install - Project 8 (G2249570): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  1. Do not attempt to pull or bend the component to improve or achieve alignment to the vehicle body panels. Failure to follow this caution could result in damage to the component.
  2. Protect the surrounding paintwork to avoid damage.
NOTE:
  1. This procedure contains illustrations showing certain components removed to provide extra clarity.
  2. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. NOTE: This step requires the aid of another technician.

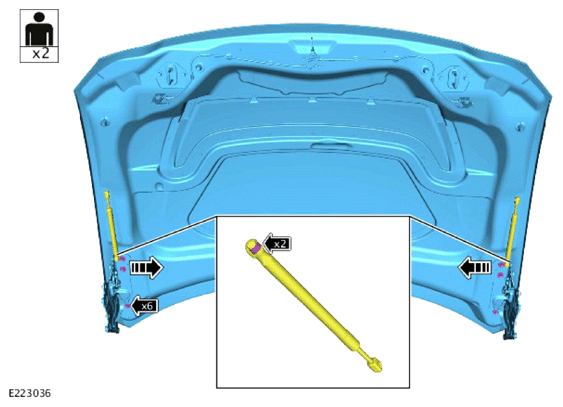

    G14009889Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Open and support the hood.
    2. Release the 2 struts.
    3. Remove the 6 nuts.
    4. With assistance, remove the hood.
