Hood - Remove For Access And Install - Project 8 (G2249570): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
1. This step requires the aid of another technician.
2. Do not tighten the nuts at this stage.
1. With assistance, install the hood.
2. Install the 6 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

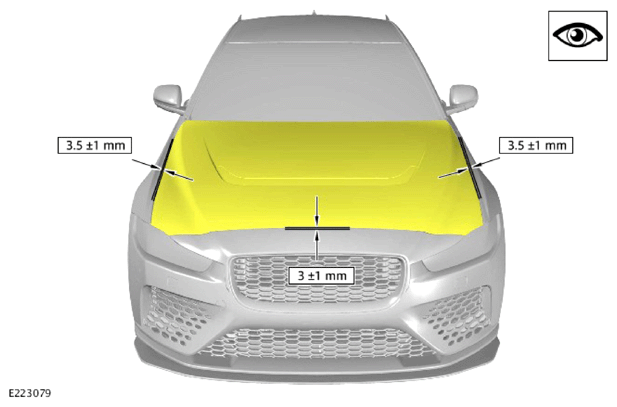

1. Close the hood and check for alignment.
2. Align the hood.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

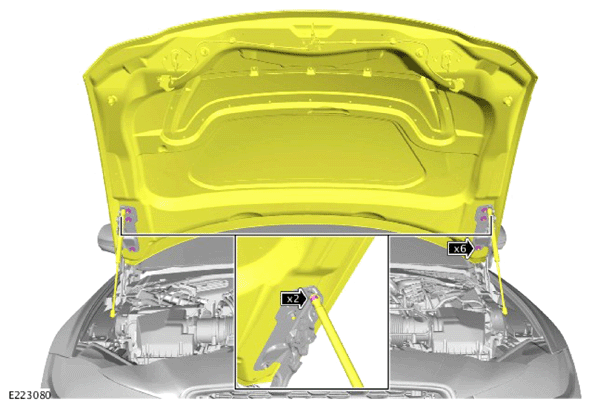

1. Tighten the 6 nuts.
  Torque : 25Nm
2. Secure the 2 struts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Close the hood and check for alignment.
2. If necessary, repeat the above adjustment procedure.
