Hood (G1823581): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Removal steps in this procedure may contain installation details.

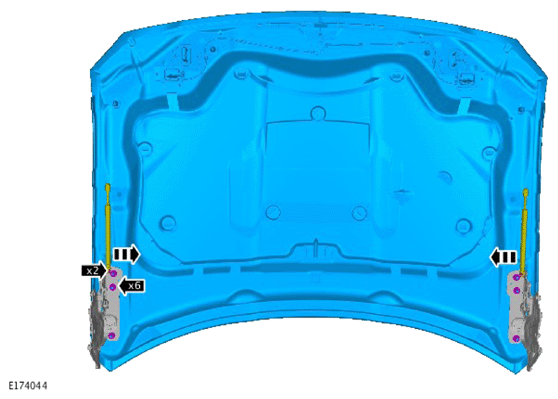

  2. G14009881Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm

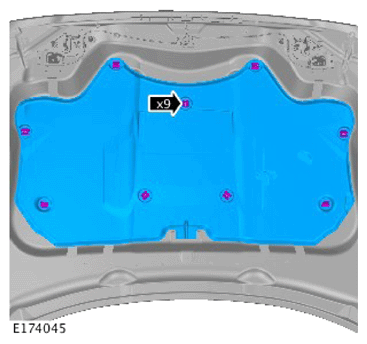

  3. G14009882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

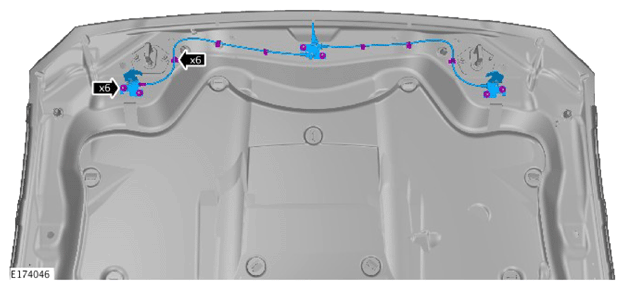

  4. G14009883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm

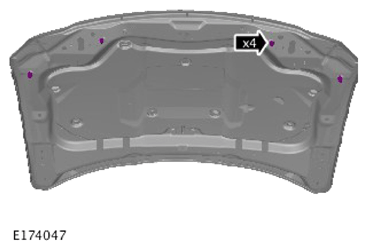

G14009884Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
