Headlamp Mounting Bracket (G1798790): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLAMP ASSEMBLY
  2. NOTE: Left side only.

    Refer to: AIR CLEANER

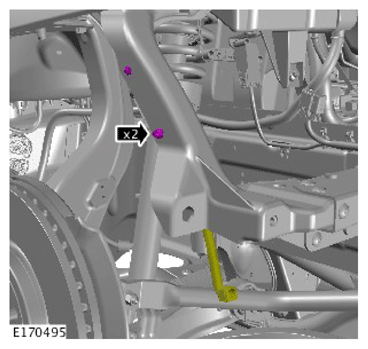

  3. G14009871Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

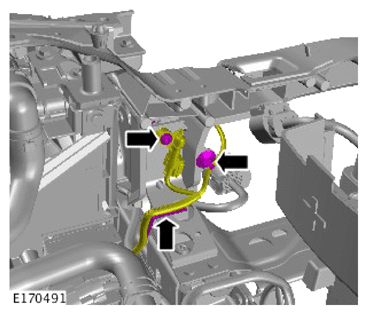

  4. G14009872Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. NOTE: Left side only.

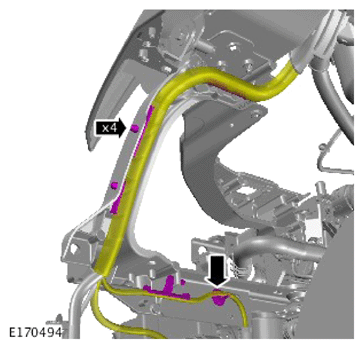

    G14009873Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE: Left side only.

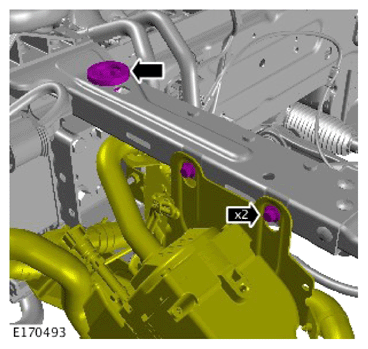

    G14009874Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. NOTE: Left side only.

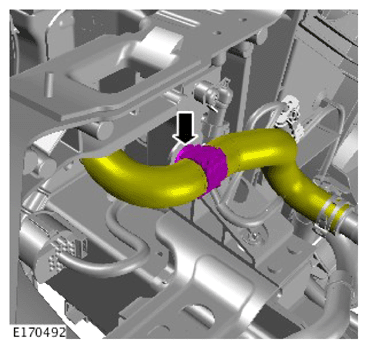

    G14009875Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

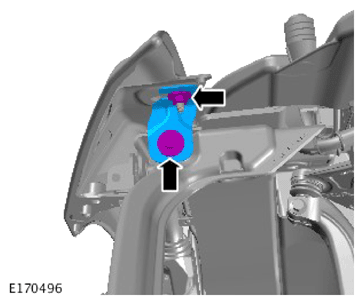

  8. G14009876Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm

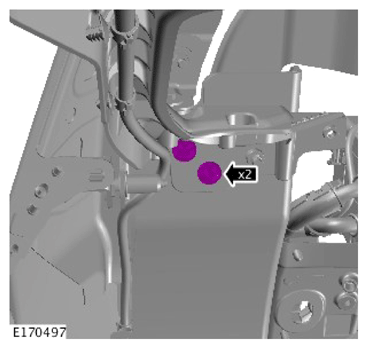

  9. G14009877Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm

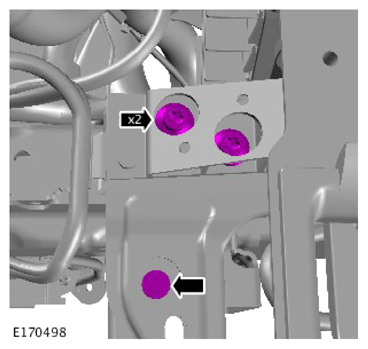

  10. G14009878Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm

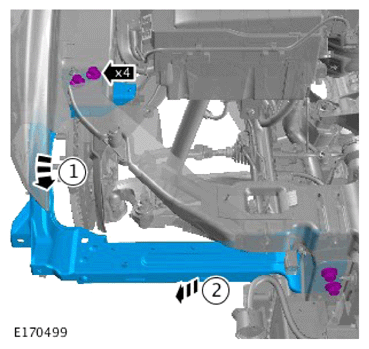

  11. G14009879Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm
