Front CROSSMEMBER Support Bracket (G1798791): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLAMP ASSEMBLY
  2. Refer to: FRONT CROSSMEMBER

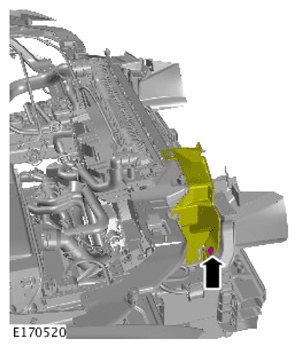

  3. NOTE: Right hand shown, left hand similar.
    G14009861Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

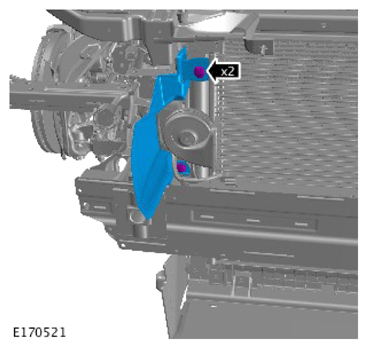

  4. NOTE: Right hand shown, left hand similar.
    G14009862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

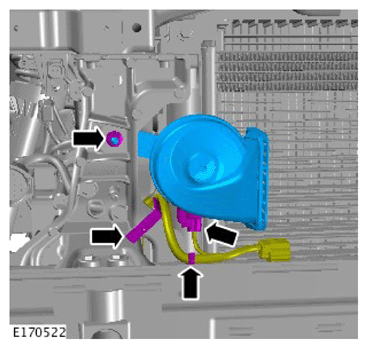

  5. G14009863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm

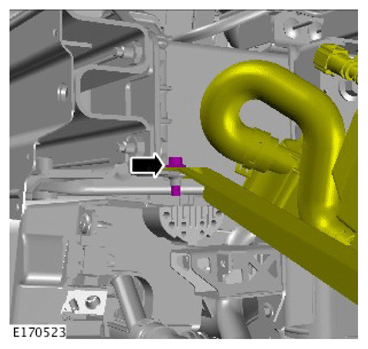

  6. NOTE: left side only.
    G14009864Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm

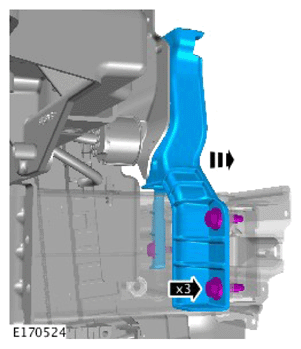

  7. G14009865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm
