Front CROSSMEMBER (G1798792): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLAMP ASSEMBLY

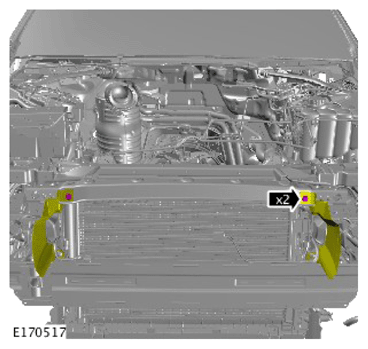

  2. G14009856Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

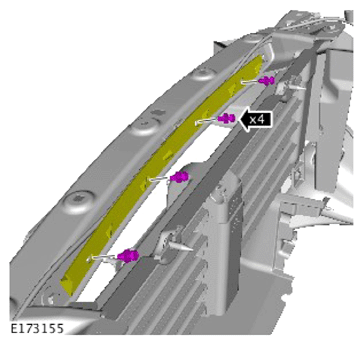

  3. G14009857Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

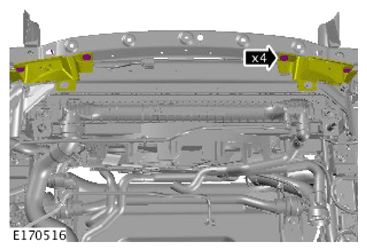

  4. G14009858Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

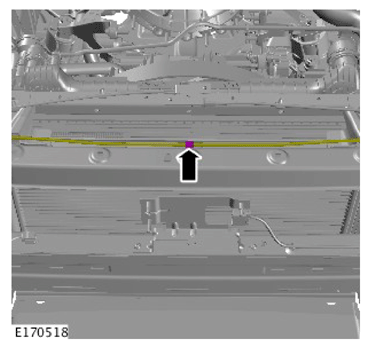

  5. G14009859Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

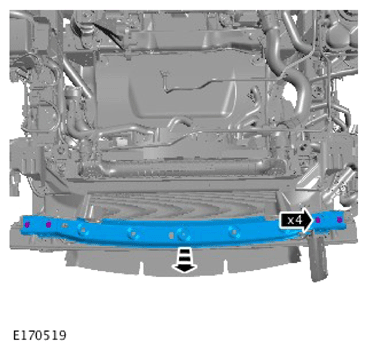

  6. G14009860Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm
