Fender - Project 8 (G2245703): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not attempt to pull or bend the component to improve or achieve alignment to the vehicle body panels. Failure to follow this caution could result in damage to the component.
Care must be taken to avoid damaging the surrounding paintwork.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the headlamp assembly.
Refer to: HEADLAMP ASSEMBLY - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the inner bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

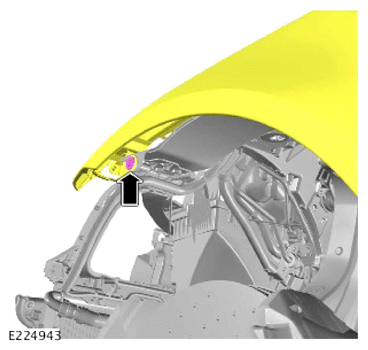

Remove the front bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

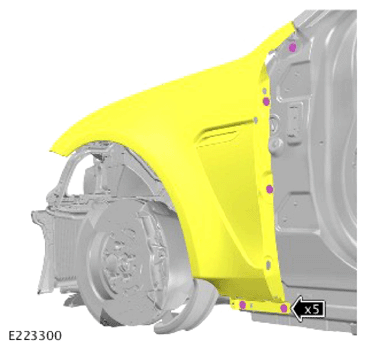

Remove the 5 rear bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

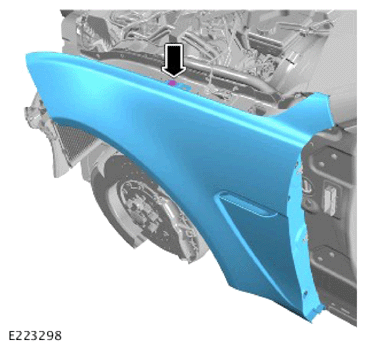

1. Remove the upper bolt.
2. Remove the fender.
Remove the fender finisher.
Refer to: FENDER FINISHER - PROJECT 8
