Fender - Project 8 (G2245703): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

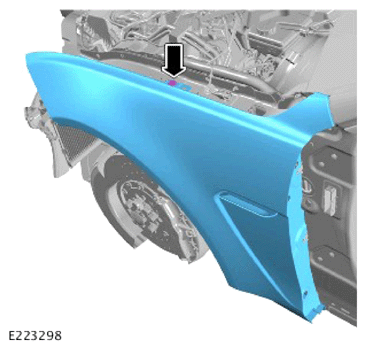

  1. CAUTION: Only tighten the bolt finger-tight at this stage.
    G14009851Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the fender.
    2. Install the upper bolt.

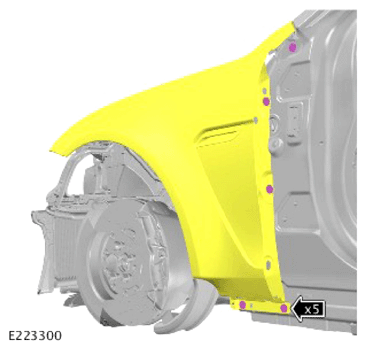

  2. CAUTION: Only tighten the bolts finger-tight at this stage.
    G14009852Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 5 rear bolts.

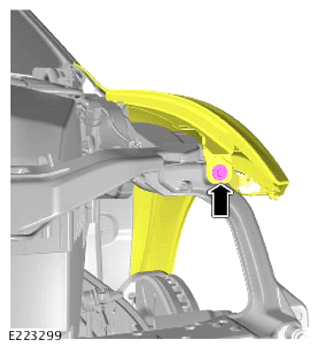

  3. CAUTION: Only tighten the bolt finger-tight at this stage.
    G14009853Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the front bolt.

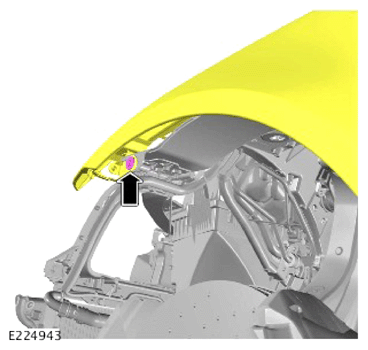

  4. CAUTION: Only tighten the bolt finger-tight at this stage.
    G14009854Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the inner bolt.

  5. Align the fender.

    Refer to: FENDER ALIGNMENT

  6. Install the headlamp assembly.

    Refer to: HEADLAMP ASSEMBLY - PROJECT 8

  7. Install the fender finisher.

    Refer to: FENDER FINISHER - PROJECT 8
