Fender (G1823028): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

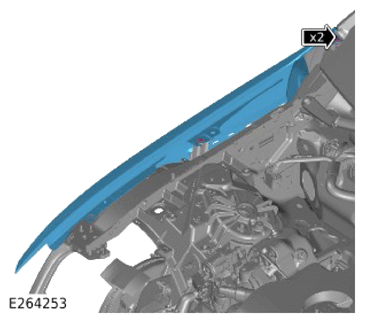

  1. G14009840Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • NOTE: Only tighten the bolts finger tight at this stage.

      Install the front right fender.

    • install the 2 bolts.

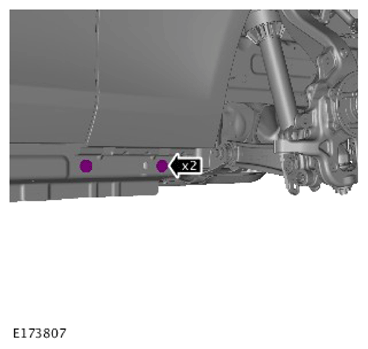

  2. NOTE: Only tighten the bolts finger tight at this stage.
    G14009841Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    install the 2 bolts.

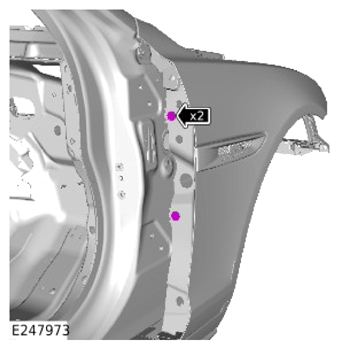

  3. NOTE: Only tighten the bolts finger tight at this stage.
    G14009842Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    install the 2 bolts.

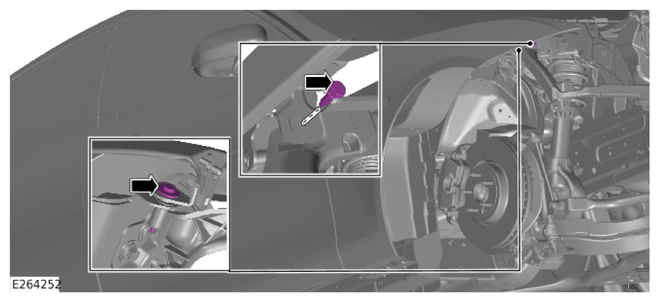

  4. NOTE: Only tighten the bolts finger tight at this stage.
    G14009843Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    install the 2 bolts.

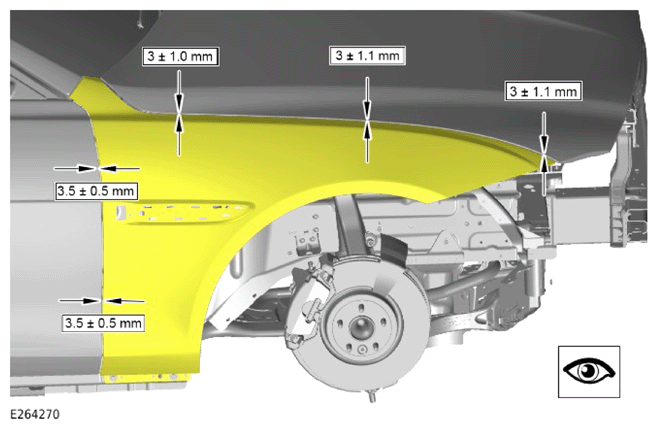

  5. G14009844Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the fender gaps to the surrounding body panels as illustrated.

  6. Tighten the 2 upper bolts.

    Torque  : 10Nm

  7. Tighten the 2 lower bolts.

    Torque  : 10Nm

  8. Tighten the 2 rear bolts.

    Torque  : 10Nm

  9. Tighten the 2 front bolts.

    Torque  : 10Nm

    1. Install the front wheel arch liner.
    2. Install the clip.
    3. Install and tighten the 2 nuts.

      Torque  : 10Nm

  11. Install the windshield moulding.
  12. Install the wheel and tire.

    Refer to: WHEEL AND TIRE

  13. Install the rocker panel moulding.

    Refer to: ROCKER PANEL MOULDING

  14. Install the front fender moulding.

    Refer to: FRONT FENDER MOULDING

  15. Install the headlamp assembly.

    Refer to: HEADLAMP ASSEMBLY
