Engine UNDERSHIELD (G1817594): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  1. Removal steps in this procedure may contain installation details.
  2. Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

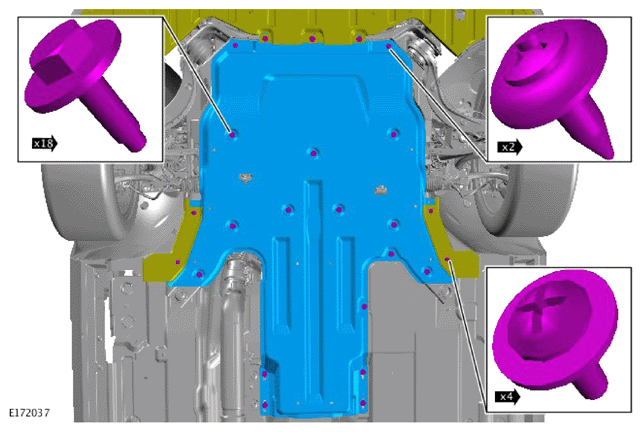

  2. G14009827Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7Nm
