Cowl Panel (G2262108): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the windshield wiper pivot arm.
Refer to: WINDSHIELD WIPER PIVOT ARM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

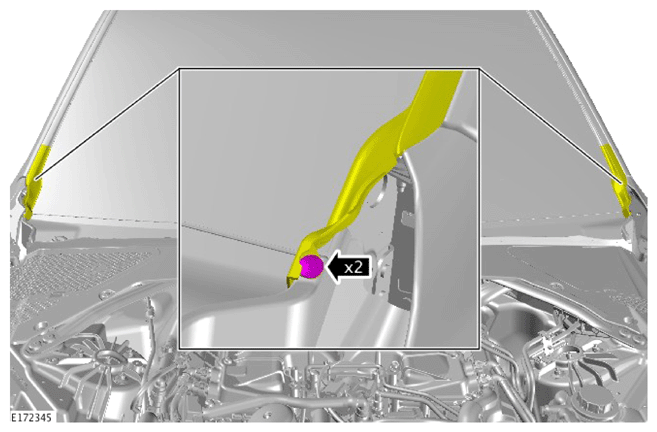

1. Remove the 2 clips.
2. Release the seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

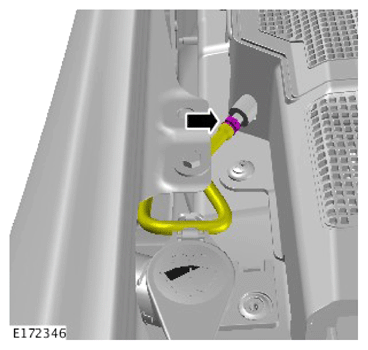

Disconnect the windshield washer hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

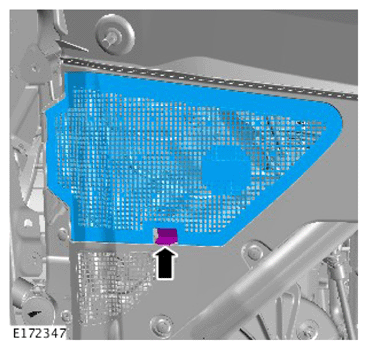

Remove the right access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

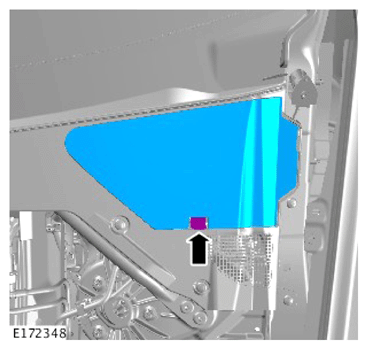

Remove the left access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

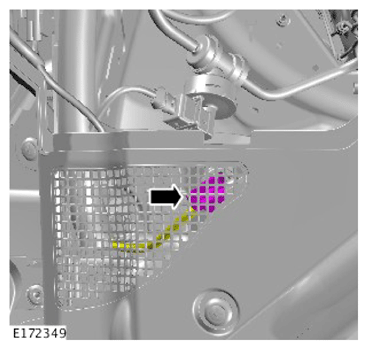

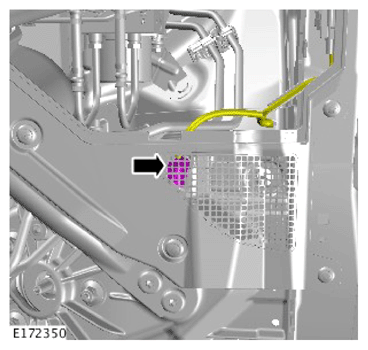

Disconnect the electrical connector at the right side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector at the left side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

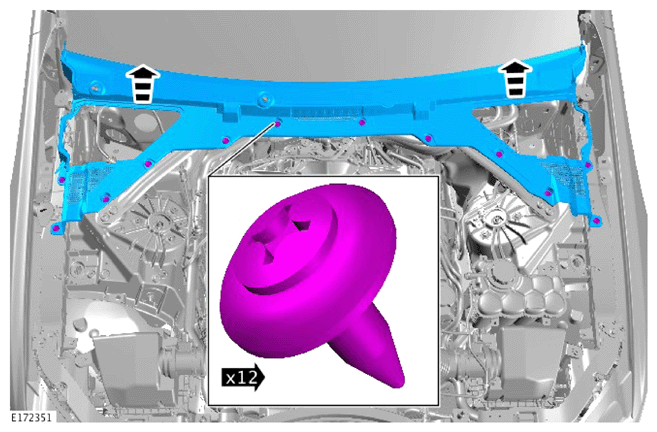

1. Remove the 12 clips.
2. Remove the cowl panel.
NOTE:
1. Only do the following step(s) if a new component is to be installed.
2. Repeat the step for other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

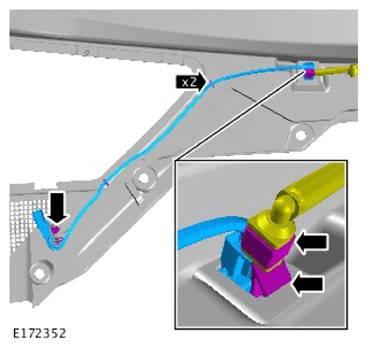

1. Disconnect the windshield washer hose from the heated windshield washer jet.
2. Release the 3 clips.
3. Remove the heated windshield washer jet from the cowl panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

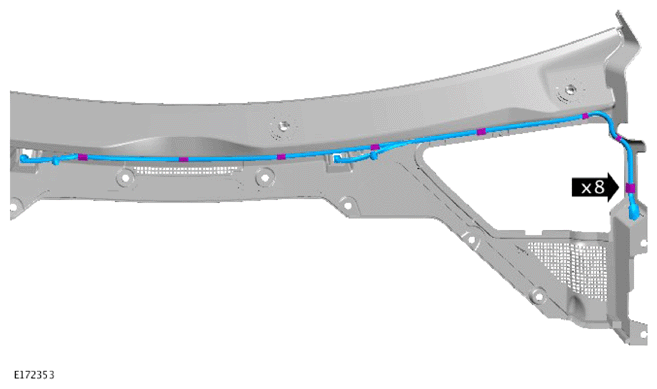

1. Release the 8 clips.
2. Remove the windshield washer hose assembly from the cowl panel.
