Lifting And Support Points (F Pace)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not allow the hoist adapters to contact the steering linkage, suspension arms, stabilizer bar, rear subframe stabilizer brackets or to compress the lower suspension arm stabilizer bar insulator. Damage to the suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the hoist adapters of two-post hoists prior to lifting the vehicle.
- Never use the differential housing as a lift point. Damage to the differential housing and cover may occur.
- When using a floor jack, a cushioned pad must be utilized to avoid body damage.

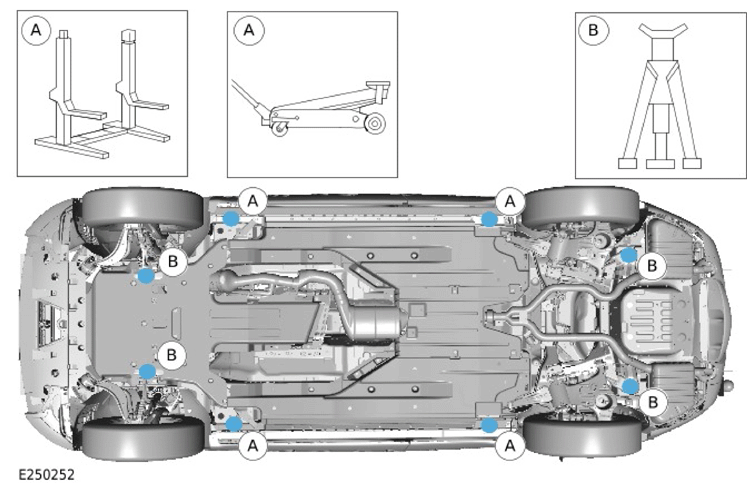

- Twin-post hoist and floor jack points
- Axle stand support points
