Right Variable Valve Timing Oil Control Solenoid (G1818510): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Lubricate the O-ring seals with clean engine oil.

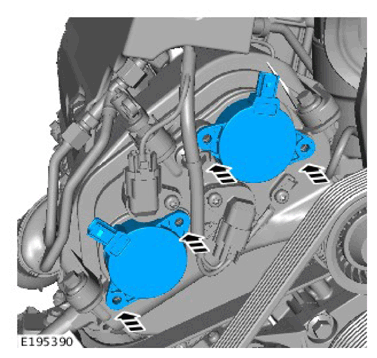

    G11308525Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the variable valve timing oil control solenoids.

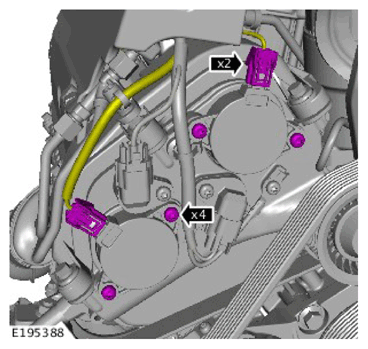

  2. G11308523Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 retaining bolts and connect the 2 electrical connectors.

    Torque  : 10Nm

  3. Install the Air Cleaner Outlet Pipe T-Connector.

    Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
