Right Camshaft Position Sensor (G1550188): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

    Refer to: LIFTING

  2. Remove the right air cleaner outlet pipe.

    Refer to: RIGHT AIR CLEANER OUTLET PIPE

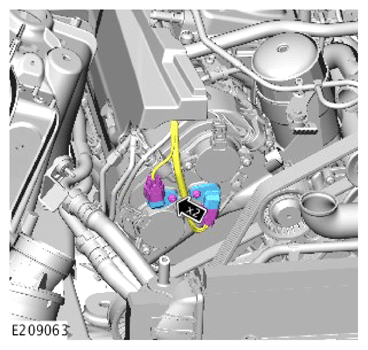

  3. G13912007Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the 2 retaining bolts.

      Torque  : 10Nm
