Manifold Absolute Pressure Sensor (G1818381): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

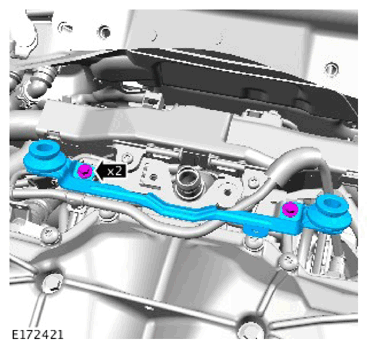

Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

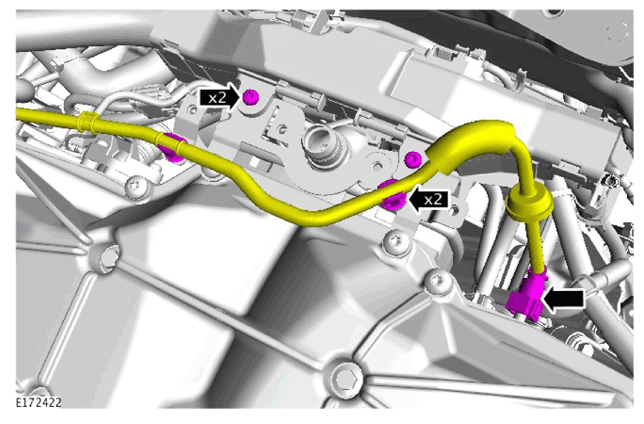

Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

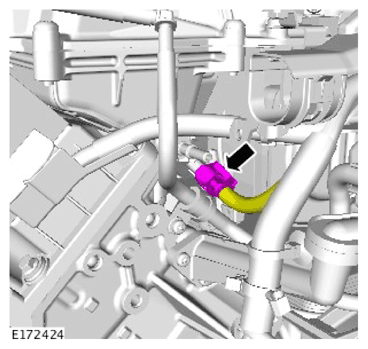

Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

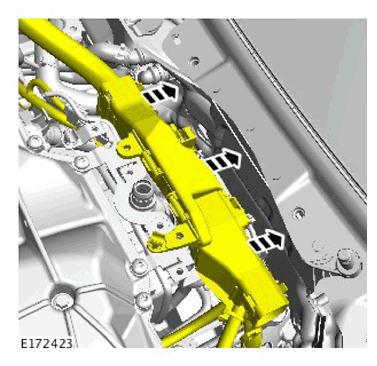

Reposition and secure the wiring harness.

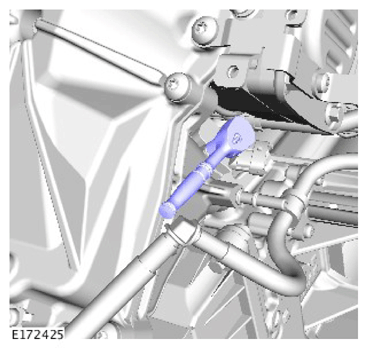

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

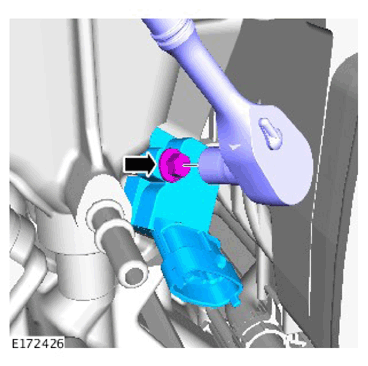

Use a suitable small ratchet to access the bolt.
CAUTION:
- Take extra care not to drop the bolt.
- Make sure that the sensor is removed straight back, as this prevents the O-ring seal catching on the housing.

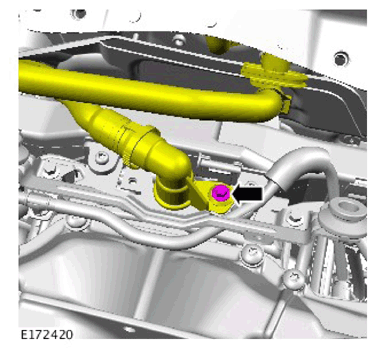

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 5Nm
