Manifold Absolute Pressure Sensor (G1818381): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

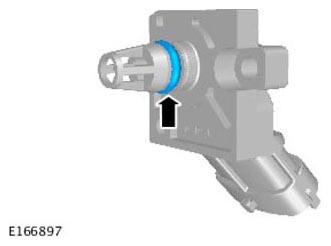

  1. NOTE: Lubricate the O-ring seal with clean engine oil.
    G11293325Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  2. To install, reverse the removal procedure.
